TRACTOR IMPLEMENTS

Automatic Potato Planter Eco

Furrow opener with replaceable wear and tear point and depth adjustable spike Rigid and concave shaped mould board for proper ridge formation Automatic Potato Planter

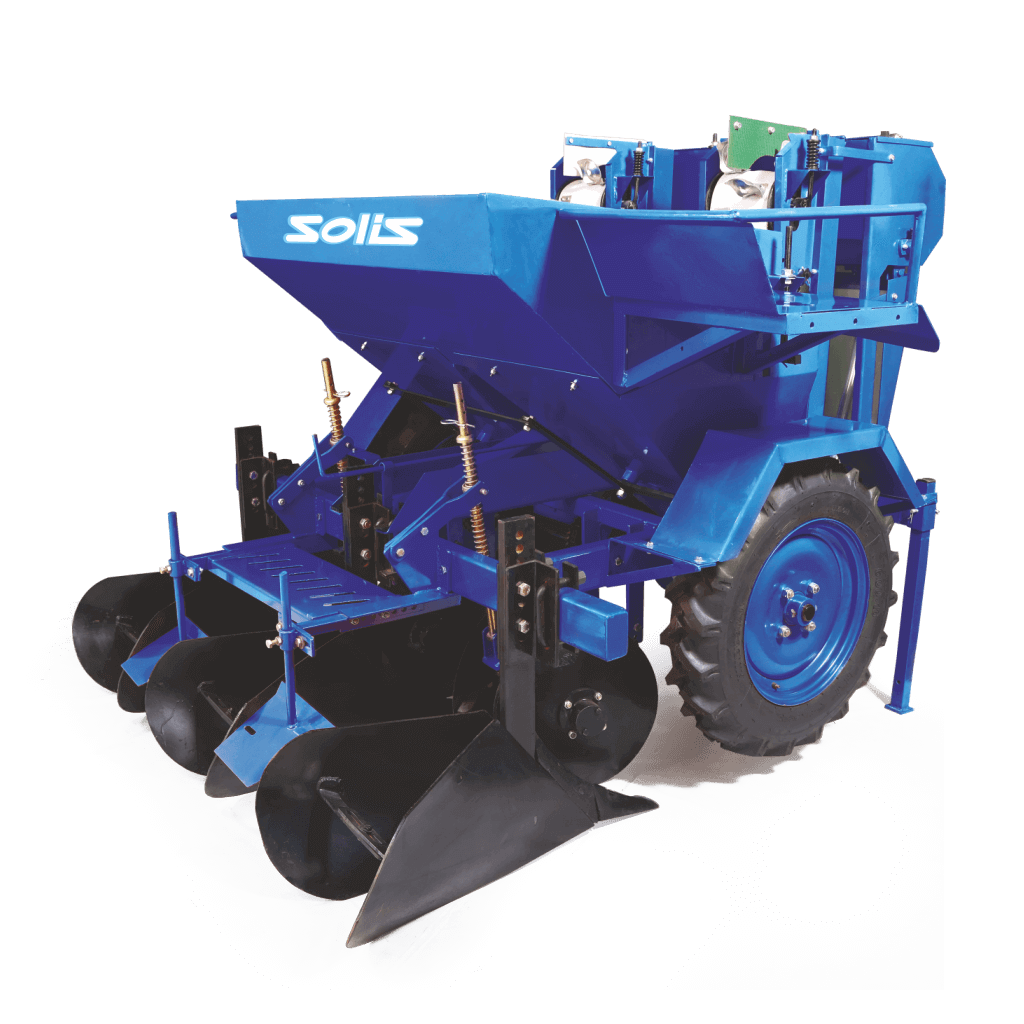

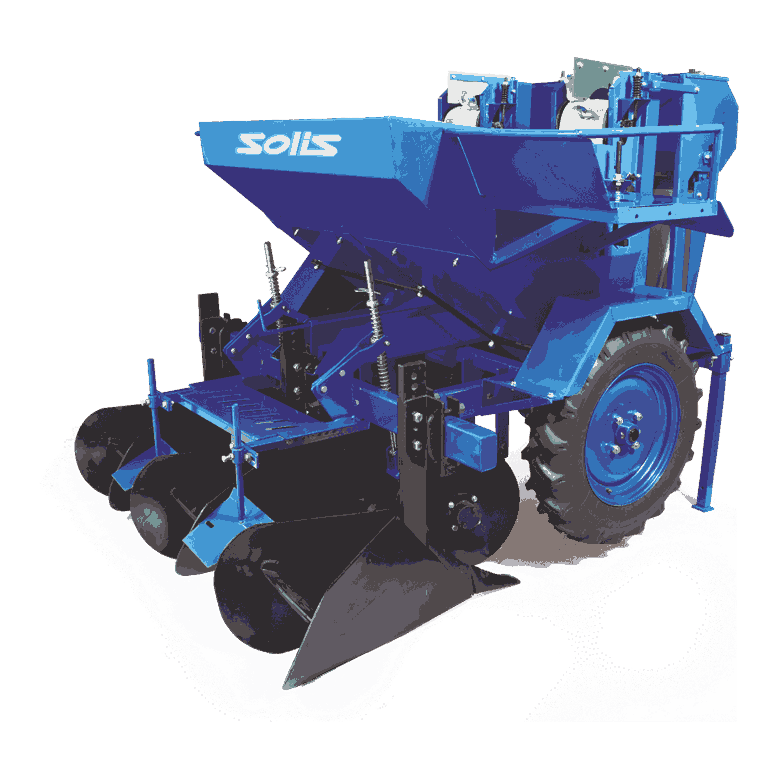

Automatic Potato Planter-ECO

The Automatic Potato Planter is useful in planting potato seeds with incredible singulation, ensuring no two potatoes are buried in a single place. Another advantage with this equipment is uniform depth during the
process with the right level of soil compaction resulting in a healthy & greater yield.

    By using this form you agree with the storage and handling of your data by this website.

    Rigid and concave shaped mould board for proper ridge formation

    Rigid and concave shaped mould board for proper ridge formation

    furrow-auto-planter-eco

    Furrow opener with replaceable wear and tear point and depth adjustable spike

    automatic-potato-planter-2

    WORLD CLASS POWDER COATED PAINT

    automatic-potato-planter-3

    BORON STEEL DISCS

    automatic-potato-planter-4

    POTATO HOLDING CUPS PROVIDING ZIG ZAG PLANTING

    automatic-potato-planter-5

    MECHANICAL VIBRATOR

    TECHNICAL SPECIFICATIONS

    Description/ Models SLPPL E 2 SLPPL E 4
    No. Rows 2 4
    No. Furrow Opener 2 4
    No of Ridge Maker 3 5
    Distance between rows (mm) 600-660 mm
    Working depth (mm) 130-150
    Working Width (mm) 1320 2640
    Powered by Wheels
    No. of cups 2X34 4X34
    Size of Potato seeds 30-75(cut or uncut)
    30-75(cut or uncut)
    Fertilizer Tank (kgs.) 75 150
    No. of Conveyor 2 4
    Hopper capacity (Kgs.) 240 420
    Planting Capacity (Acre/Hrs.) 1.25 2.5
    Total Length (mm) 2100
    Total Width (mm) 1700 3000
    Total Height (mm 1550
    Total Weight (unladen) (Kgs. Approx.) 580 880
    Potato Planting distance (mm) 100-125-150-175-200-225-250-300
    Lower Linkage Category CAT II
    Tractor Power (HP) 40-60 60-75
