Get Solis S26 Compact Tractor for Higher Productivity

Solis S 26

POWER THAT
ELEVATES POTENTIAL

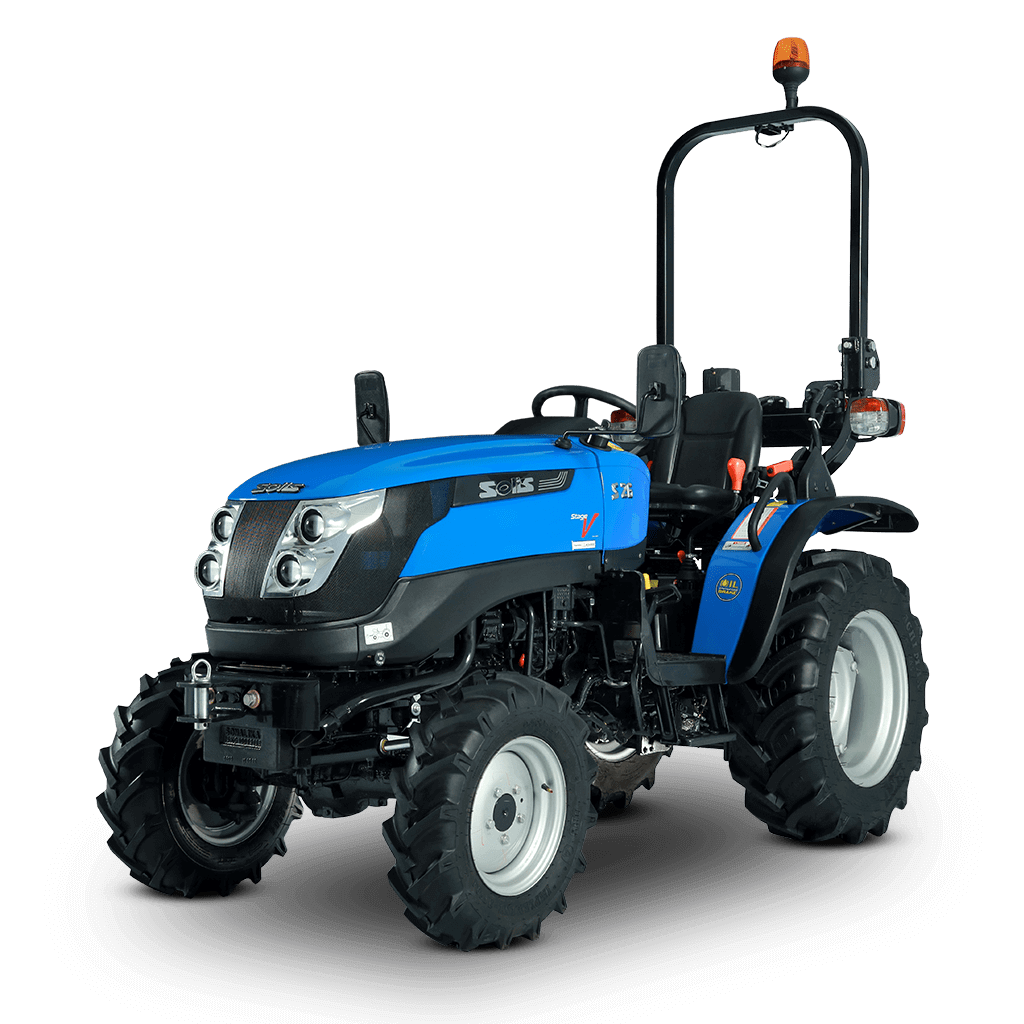

Taking productivity a notch higher, SOLIS S 26 is a compact tractor that enables a variety of activities on all kinds of terrains with respect to gardening and farming needs. The best compact tractors empowered with hydraulic power steering, this tractor helps in reducing operational stress for the user. With powerful 4 wheel drive and effective traction capability, the compact SOLIS S 26 enables smooth operation. Fully empowered with Industrial/ Agri/ Turf tyres (optional) for easy operation on every farm and optional cabin facility, this efficient tractor is a smart buy and is capable of igniting your potential with more power.

POWER PACKED ENGINE

TWIN PROJECTOR HEADLAMPS

AGRI/IND./TURF TYRE OPTION

HEAVY DUTY FRONT AXLE

Download Brochure

TECHNICAL SPECIFICATION

Technical Specifications

Engine Type			3 Cylinder Diesel Engine
HP Category			26
No. of Cylinders			3
Aspiration			Natural
Cubic Capacity (cc)			1319
Rated RPM			2500
Air Cleaner			Dry Type with Clogging Sensor
Cold Start			Standard
Max Torque (Nm)			76.3 Nm
Exhaust			Silencer in the engine compartment, Downward Discharge
TRANSMISSION
Drive			4WD
Clutch			Single Clutch
Gearbox			6F+2R
Front Axle			Heavy Duty Axle
Transmission			Sliding Mesh
SPEED (FORWARD) Agri Tyre
Maximum Speed (Km/Hr)			16.2@2815 fly up
Minimum Speed (Km/Hr)			1.64@2500 rated
BRAKES
Brakes			Oil Bath Brakes
Type of Actuation			Mechanical
Parking Brake			Independent
DIFFERENTIAL LOCK
Differential Lock			Mechanical, Foot Operated
PTO
PTO (RPM)			540/1000
PTO (Actuation)			Mechanical
STEERING
Steering			Power
ELECTRICAL
Battery			12V, 65Ah
Alternator			12V, 42Amp
Parking Brake			Standard
HYDRAULICS
3 Point Linkage			Cat 1-N
Stay Bars			Anchor Chain
Auxiliary Hydraulic Circuit			1DA
Lifting Capacity (Kg)			600 / 775 (Optional)
Lifting rods			Standard
Litre Per Minute (LPM)			13.5
TYRE
Front			6.00 – 12
Rear			8.30 – 20
Radial Agri: Front \| Rear	Turf: Front \| Rear	Ind: Front \| Rear	GALAXY PRO
Front 6.5/80-12 REAR 280/70 R18	23×8.50-12 33×15.5-16.5	23×8.50-12 33×15.5-16.5	FRONT 220/55R12 REAR 280/70R16
Front loader		YES optional

Standard Equipment

Safety Switch
Clutch Safety Switch			Standard
PTO Safety Switch			Standard
Neutral Safety Switch			Standard
CAPACITY (Ltrs.) (+/-5%)
Fuel Tank (Ltr.)			28
TURNING RADIUS
With Brakes (m)			3.18 (RHS), 3.10 (LHS)

Optional Equipment

Tires:	– Agricultural tires (radial) – Turf tires – Industrial tires
Cabin	– Incl. heating
Follower front linkage	– Approx. 1,100 kg lifting capacity – CAT 0 with coupling triangle or CAT 1 (with Walterscheid quick coupler) – Two double-acting lifting cylinders – Lower link with pendulum compensation, can be folded up and removed without tools
Solis front loader	– Parallel guide – 300 kg lifting capacity (with standard bucket ) – 3. Control circuit – Own mounting – Available attachment tools: bucket, rock bucket, grab bucket, 4 in 1 bucket

Dimensions

DIMENSION & WEIGHT (+/-5%) Agri Tyre
Weight (Kg)			1070, 1265 with Cabin
Wheel Base (mm)			1560
Total Length (mm)			2760
Total Width (mm)			1075 (max) – 1055 (min)
Height (mm) Up to ROPS			1955
Min. Ground Clearance (mm)			240
Front Track (mm)			885
Rear Track (mm)			835

Special Features

Fuel Indicator Gauge			Standard
Front Tow Hook			Standard
Front & Rear Weights with Std. Ballast			Front Weights – 15 x 2
Trailer Hitch			Drawbar / Optional Towbar
Roll Over Protection			Standard
Canopy			Optional

MAJOR APPLICATIONS

Fueling your versatility with more power, the SOLIS S26 works like the perfect agri-professional in multiple farm applications. The high lifting capacity enables you to perform loader and haulage applications seamlessly while the hydraulic power steering adds more comfort to your farming endeavours. This smart tractor is an absolute champion not only for industrial challenges but also for maintenance tasks like livestock farming and green house applications, enabling extra precision in the fields.
