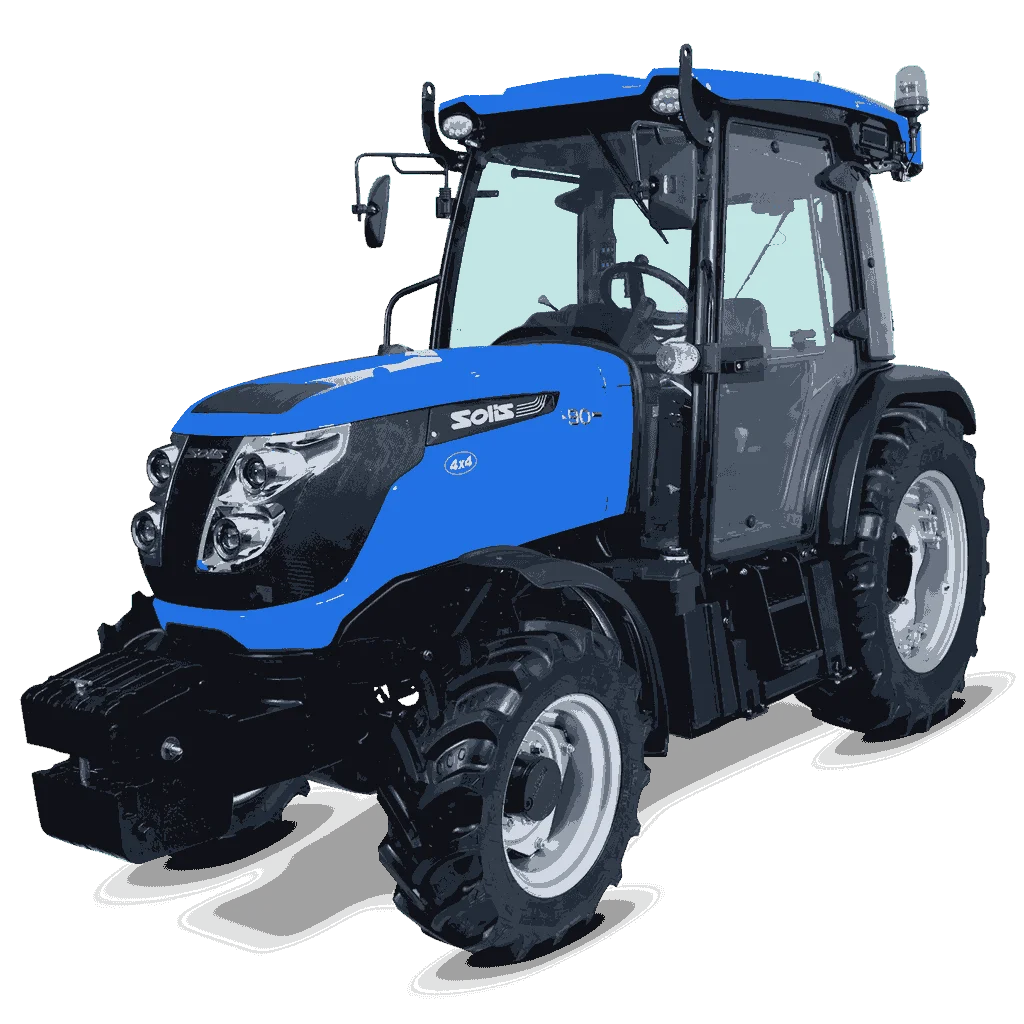

Solis N 90
THE NARROW FIELD
PROFESSIONAL

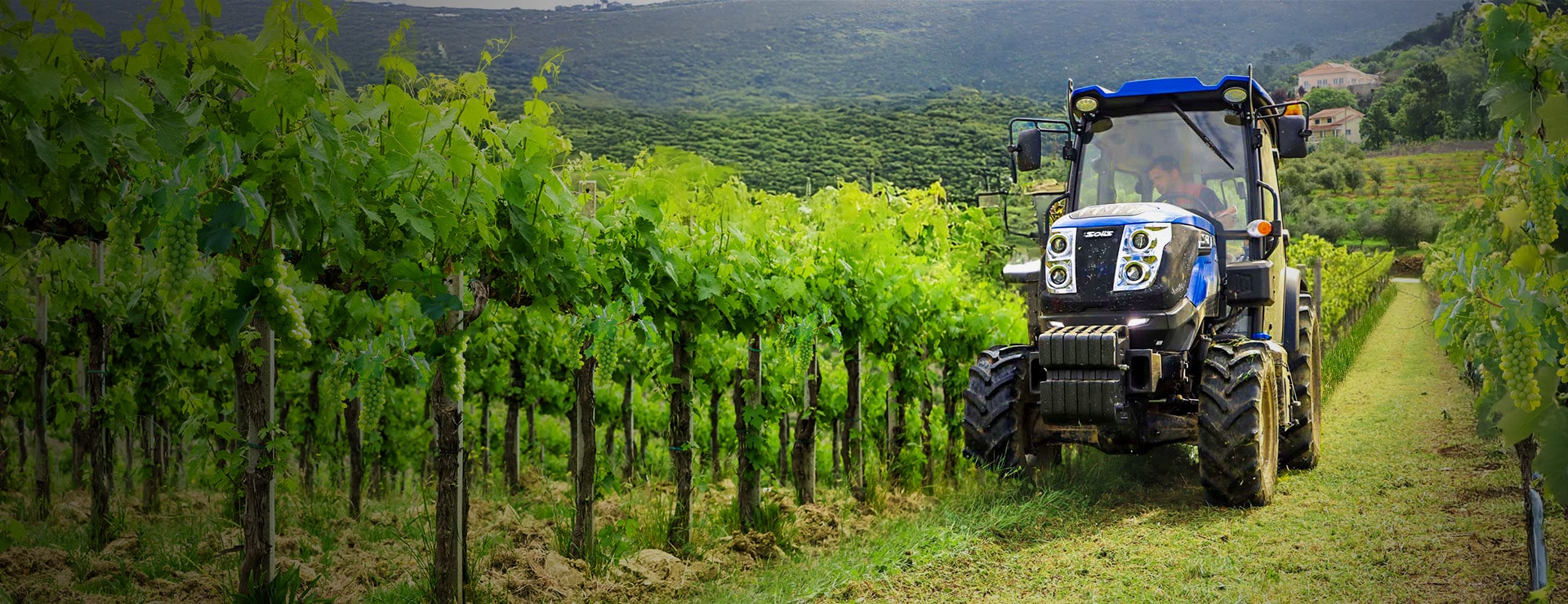

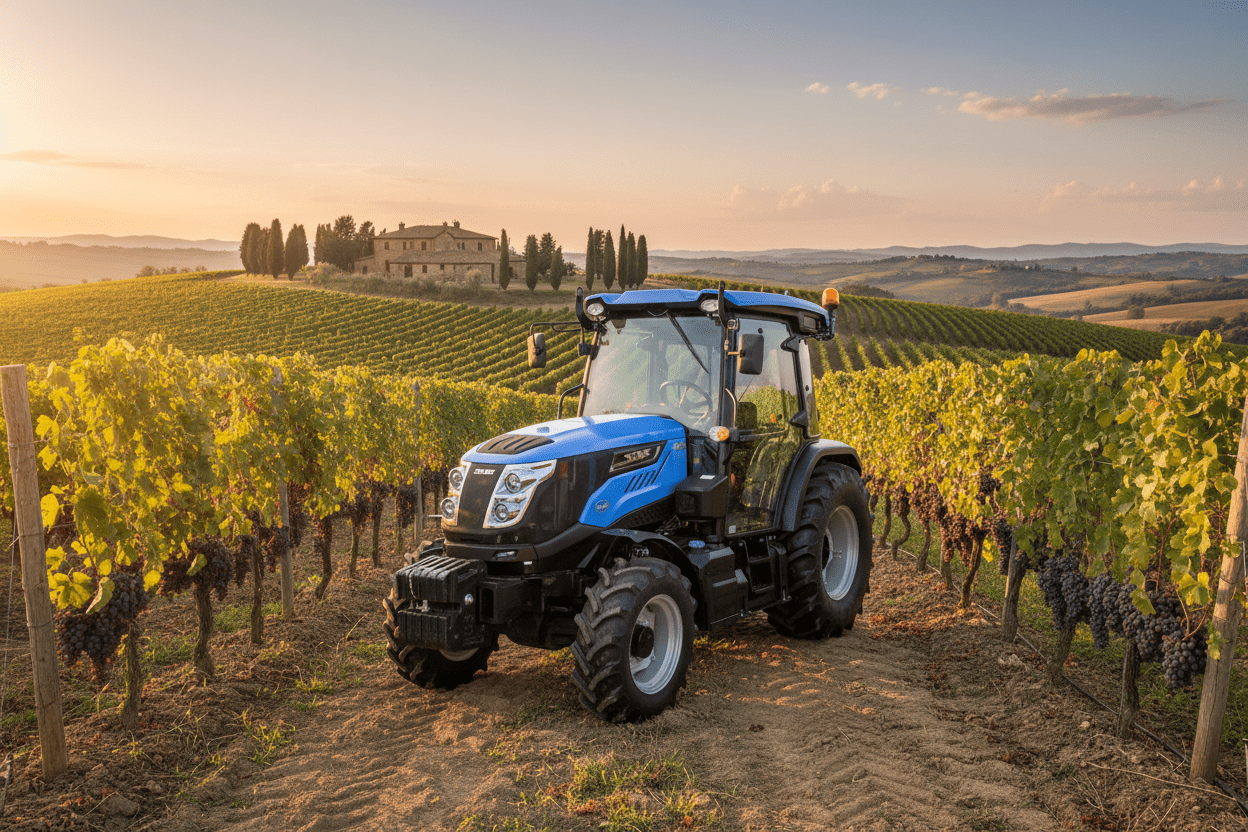

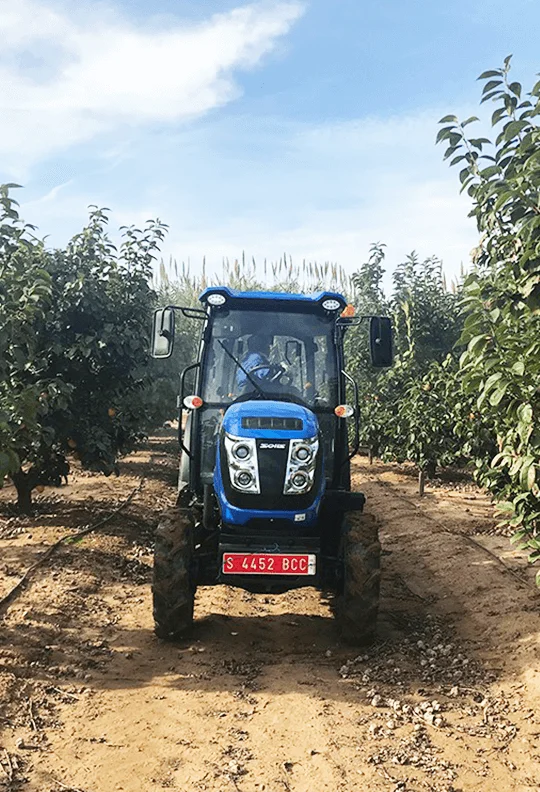

Spacious and functional as it promises, SOLIS N 90 delivers ease of operation with power steering and a competent strong build. The power steering and minimum turning radius is ideal for mulching, mowing, soil management and crop protection applications. With a strong build and narrow façade, SOLIS N 90 is a combination of greatness, toughness and utility for specialty applications. The compact design is ideal for vineyard & orchard farming.
4 CYLINDER TURBO CHARGED CRDI ENGINE
2SA/2DA HYDRAULIC CIRCUIT
SYNCHROMESH TRANSMISSION

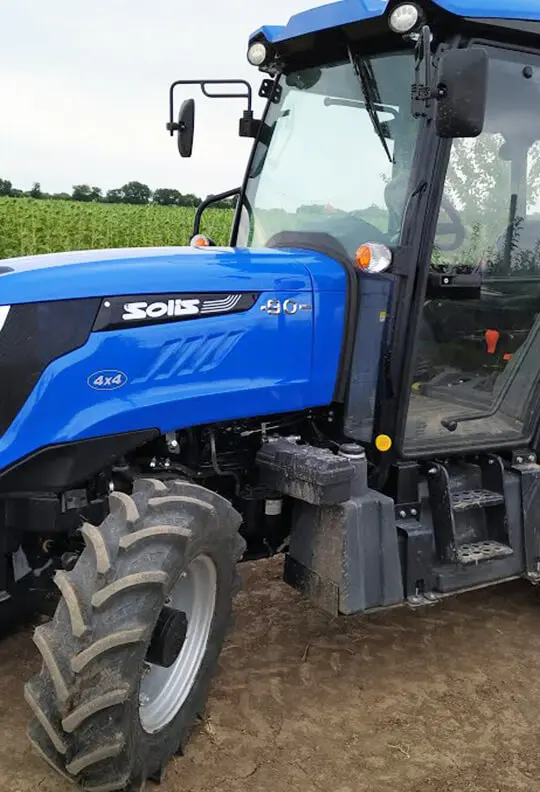

SLEEK & STYLISH BONNET
TECHNICAL SPECIFICATION
| ENGINE | |
| HP Category | 4 Cylinder Turbocharged |
| Emission | Stage 3A / Stage 2 |
| HP Category | 90 |
| No. of Cylinders | 4 |
| Aspiration | Turbocharged |
| Cubic Capacity (cc) | 4087 |
| Rated RPM | 2000/2200 |
| Air Cleaner | Dry Air Cleaner |
| Cold Start | Standard |
| Max Torque (Nm) | 360@1300 ( Stage 3A) |
| Exhaust | Underhood Downdraft Towards the Floor |
| TRANSMISSION | Towards the Floor |
| Clutch | Double |
| Gearbox | 12F+12R |
| Front Axle | 4WD |
| Transmission | Synchromesh Shuttle Transmission
with Creeper |
| SPEED (FORWARD) | |
| Maximum Speed (Km/Hr) | 28.27@2000 erpm |
| Minimum Speed (Km/Hr) | 0.46@2000 erpm |
| BRAKES | |
| Brakes | Oil Immersed Brake |
| Type of Actuation | Mechanical |
| Parking Brake | Independent Type |
| DIFFERENTIAL LOCK | |
| Differential Lock | Yes, Foot Operated |
| PTO | |
| PTO (RPM) | 540/540E |
| PTO (Actuation) | Mechanical |
| STEERING | |
| Steering | Power |
| ELECTRICAL | |
| Battery | 12V, 85Ah |
| Alternator | 12V, 90Amp |
| Seven Pin Trailer Socket | Standard |
| HYDRAULICS | |
| 3 Point Linkage | CAT-II |
| Stay Bars | Adjustable |
| Hydraulic Lifting Capacity (Kg) | 2500 |
| Auxiliary Hydraulic Circuit | 2DA/2SA/3DA (Optional) |
| TYRE | |
| Front | 8-18 |
| Rear | 14.9-24 |
| Tyres 4WD 2WD | 1) Front Tyre: 260/70R16 | Rear Tyre: 360/70R24 2) Front Tyre: 280/70R18 | Rear Tyre: 360/70R28 3) Front Tyre: 280/70R18 | Rear Tyre: 420/70R24 4) Front Tyre: 6.5×16 | Rear Tyre: 360/70/R28 5) Front Tyre: 6.0×16 | Rear Tyre: 360/70/R24 6) Front Tyre: 6.5×16 | Rear Tyre: 420/70R24 |
| Cabin | HVAC |
| Front Mudguard | Standard |
| Fuel Indicator Gauge | Standard |
| Front Tow Hook | Standard, Inbuilt in Front Weights |
| Front & Rear Weights with Std. Ballast | Front-72 kg + 6×31 kg Front Removal Weight. / Rear 1*30 kg at Each Wheel |
| Tyre | Front Tyre: 7.5×16 | Rear Tyre: 16.9×30 |
| Trailer Hitch | Swinging Drawbar |
| ROPS | Standard |
| Tires | Radial tires |
| Cabin | including air conditioning |
| Weight (Kg) | 2735 |
| Overall Length (mm) | 4022-4252 |
| Overall Width (mm) | 1475-1606 |
| Overall Height (mm) | 2630 |
| Wheel Base (mm) | 2307 |
| Min. Ground Clearance (mm) | 255 |
| Front Wheel Track Agri (mm) | 1150-1286 |
| Rear Wheel Track Agri (mm) | 1082-1213 |
| SAFETY SWITCH | |
| Clutch Safety Switch | Standard |
| PTO Safety Switch | Standard |
| Neutral Safety Switch | Standard |
| CAPACITY (LTRS)(+/-5%) | |
| Fuel Tank (Lit.) | 73 |
| TURNING RADIUS | |
| Without Brakes (m) | 4.58 |
MAJOR APPLICATIONS

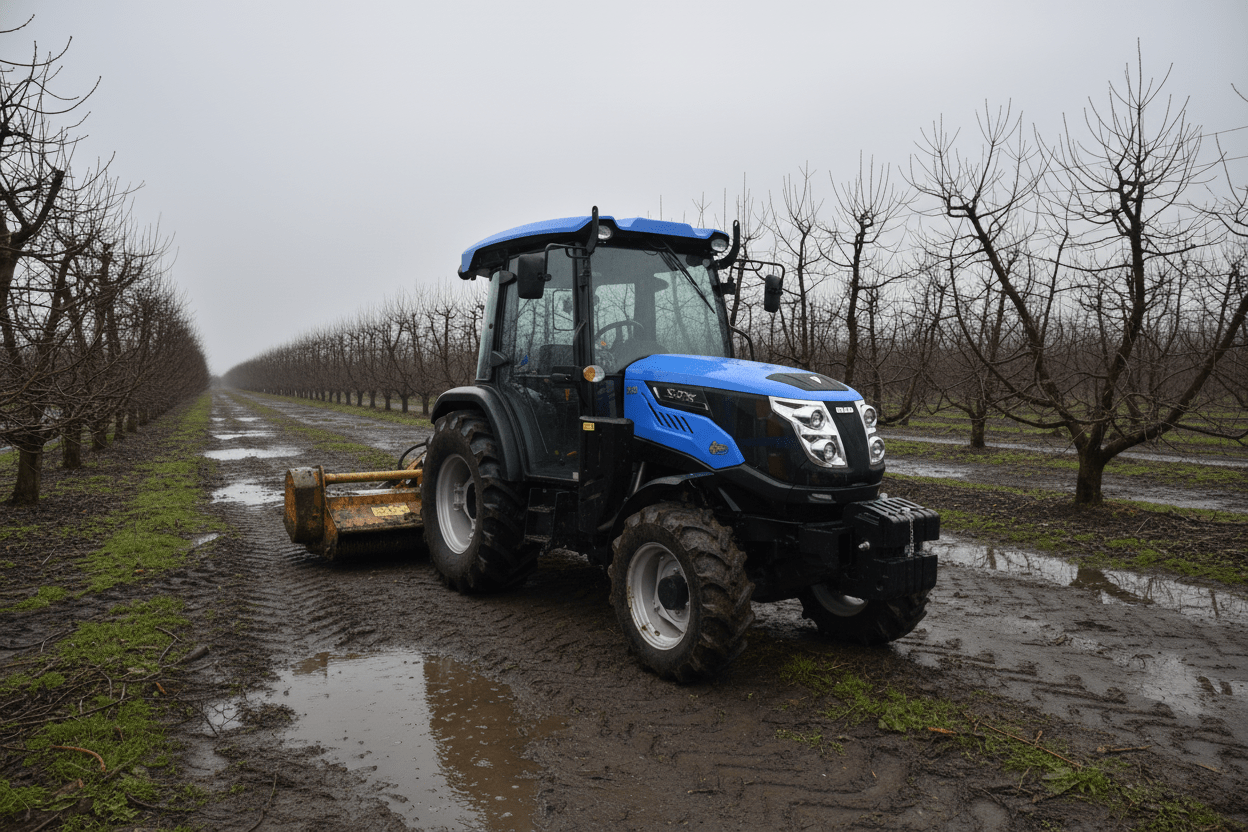

Hailed as the perfect companion for narrow farming, the SOLIS N90 goes the extra mile in taking your farming aspirations to a new high. The compact size of this farming professional promises to reduce operational stress while the power steering ensures a smooth ride through all your ventures. Highly competent and strong, this strong tractor is ideal for multiple farm applications like mowing your lawn to perfection, managing your soil efficiently and protecting your crop from unwanted weed and pests.
