TRACTOR IMPLEMENTS

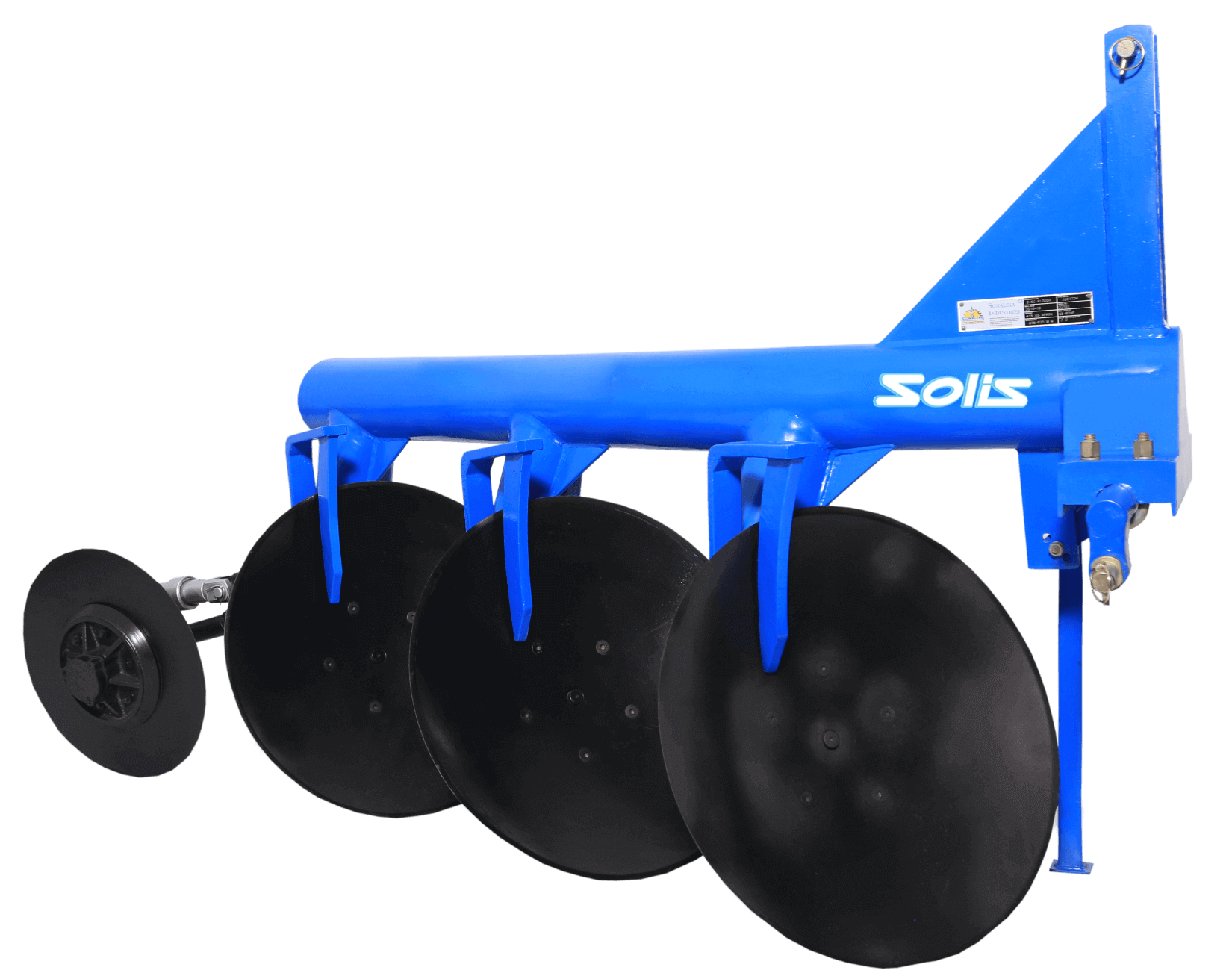

Disc Plough
Disc Plough Regular Series
Disc Plough is used for cutting, lifting and turning of the soil. It cuts trash and buries it completely. It is also used for turning green manure crop for decaying under the soil, which adds humus to the soil. It is also used for turning and mixing compost, farmyard manure or lime into the soil.
SCRAPPER BAR TYPE
HEAVY DUTY FRAME
DIRECTION CONTROL DISC
DURABLE BORON STEEL DISC
TECHNICAL SPECIFICATIONS
| Model Name | NO OF DISC | TYPE OF DISC | DISC DIAMETER (MM) |
WORKING WIDTH (MM) |
BEARING HUBS | DRAWBAR TYPE |
WEIGHT (KG. APPROX) |
TRACTOR POWER (HP) |
| SL-DP-02M | 2 |
Plain
|
510x5T | 400-450 | 2 |
Round/
Hexagonal |
170 | 20-26 |
| SL-DP-02 | 2 |
660
|
500-550 | 2 | 295 | 50-60 | ||
| SL-DP-03 | 3 | 850-900 | 3 | 395 | 60-75 | |||
| SL-DP-04 | 4 | 1100-1150 | 4 | 495 | 80-90 | |||
| SL-DP-05 | 5 | 1600-1650 | 5 | 600 | 100-110 |
