TRACTOR IMPLEMENTS

Sub Soiler

High resistant steel for heavy duty work Boron steel shovels Provision of space adjustment between tynes Heavy duty frame for tough operations Heavy duty pointed & Reversible Shovels

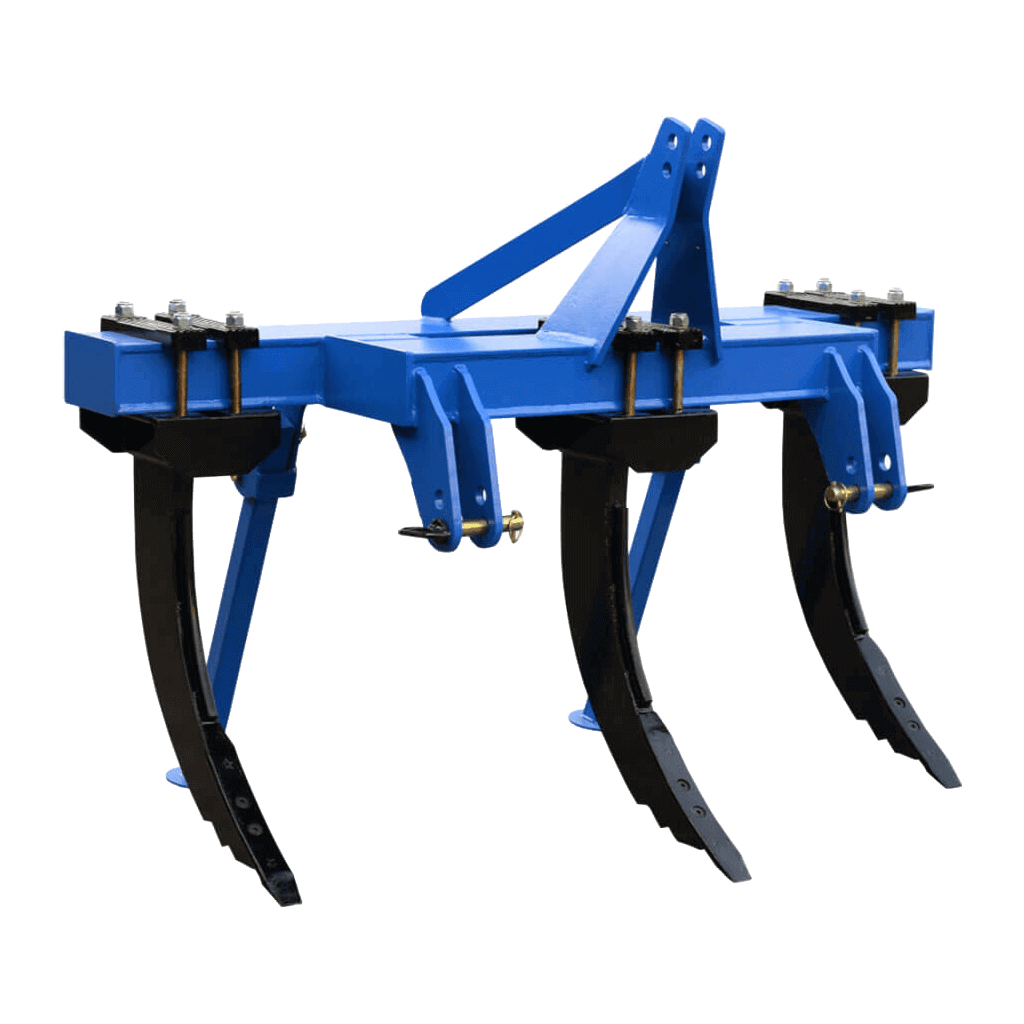

Sub Soiler

Sub soiler is an agricultural implement developed for soil cultivation methods. It provides cultivationg soil with low costs and brightens hard plow pan occurring in the land. It protects moisture by providing that rain water is absorbed by the soil. It release water , air and plant communication in the soil in the best way. The high resistant steel that is used for heavy duty work.

    By using this form you agree with the storage and handling of your data by this website.

    Heavy duty frame for tough operations

    Heavy duty frame for tough operations

    Boron steel shovels

    Boron steel shovels

    Provision of space adjustment between tynes

    Provision of space adjustment between tynes

    Heavy duty frame for tough operations

    High resistant steel for heavy duty work

    Heavy duty pointed & Reversible Shovels

    Heavy duty pointed & Reversible Shovels

    TECHNICAL SPECIFICATIONS

    Model Name Length (mm) Width (mm) Height(mm) Width of cut (mm) Working Depth (mm) No. of Shanks Under Beam Clearance (mm) Power Required (HP) Operator Speed
    SL-SS1 660 685 1250 650-680 600 1 725 35 to 45 7 to 10 kmph
    SL-SS2 1065 1790 1250 750-790 600 2 725 55 to 60 7 to 10 kmph
    SL-SS3 1065 1790 1250 1490-1530 600 3 725 75 to 80 7 to 10 kmph
    SL-SS4 1525 3375 1270 2950-3050 800 5 725 100 to 120 7 to 10 kmph
