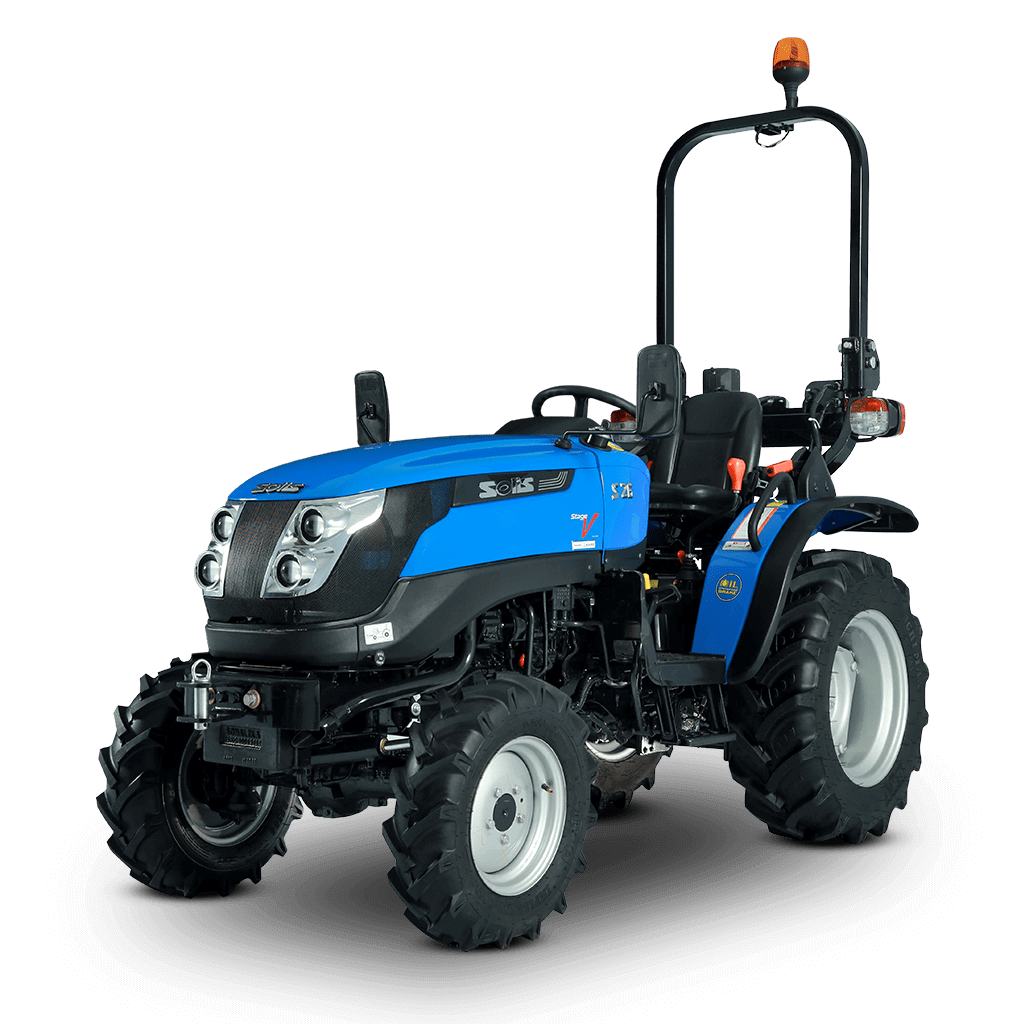

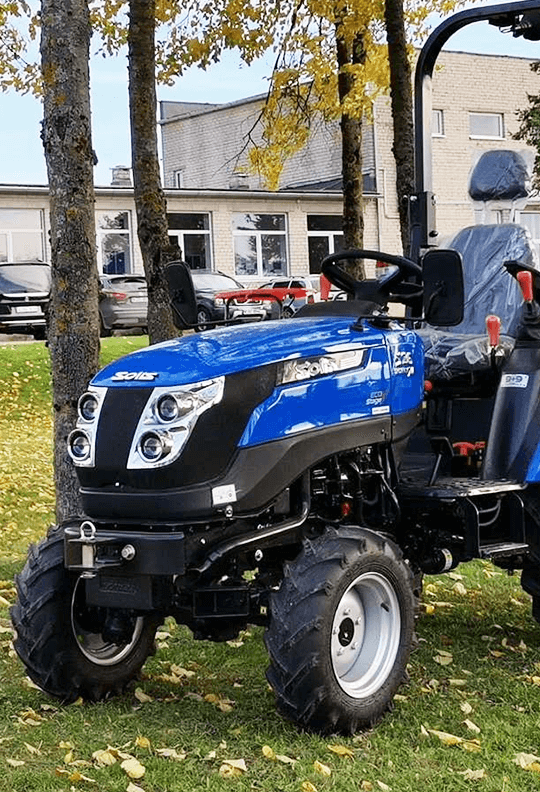

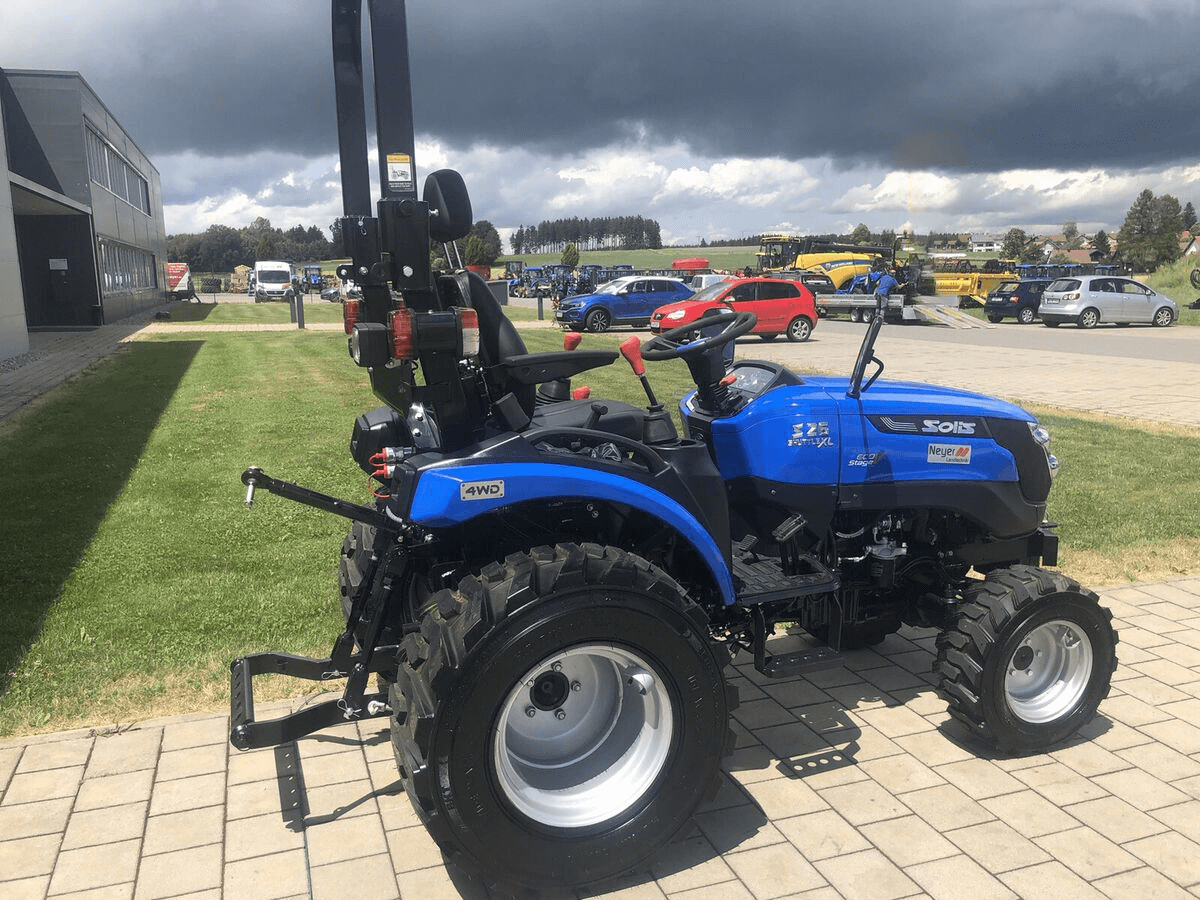

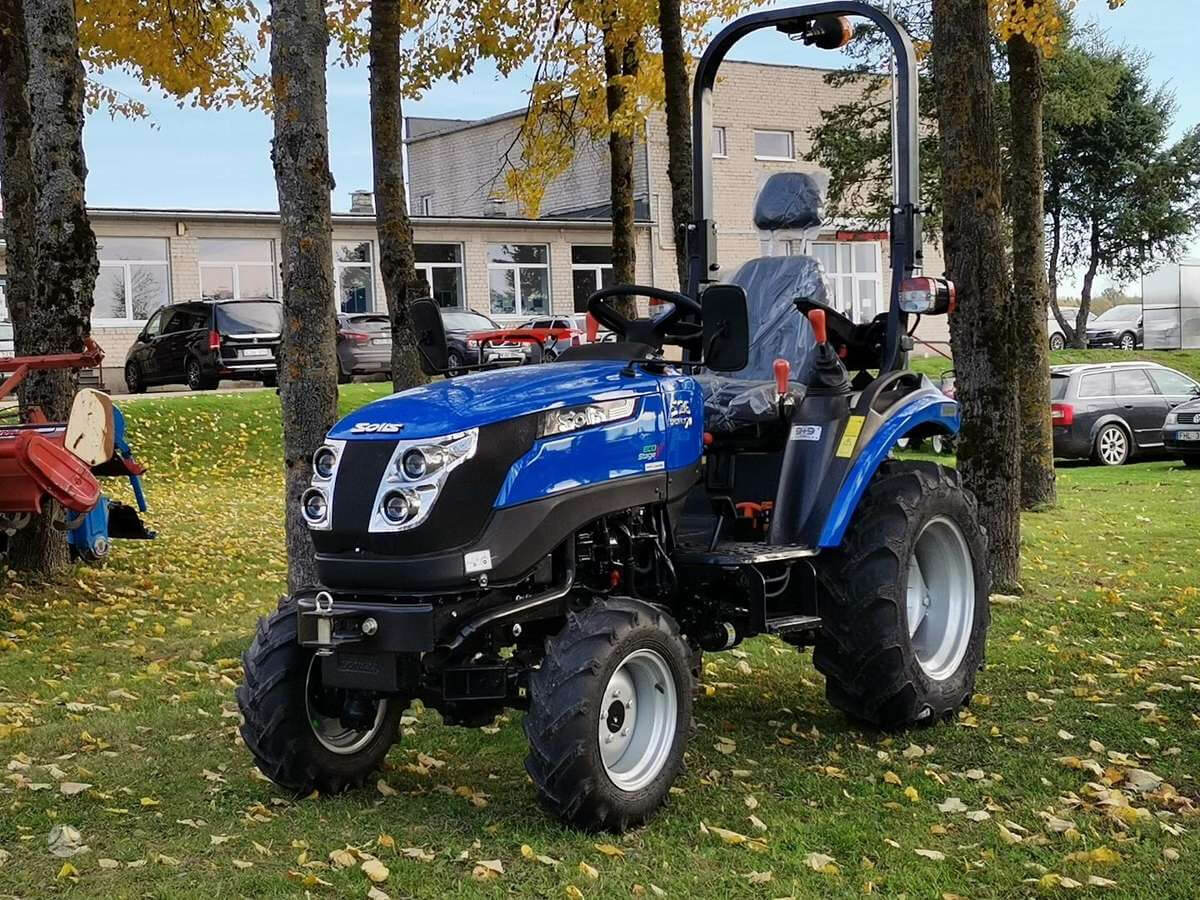

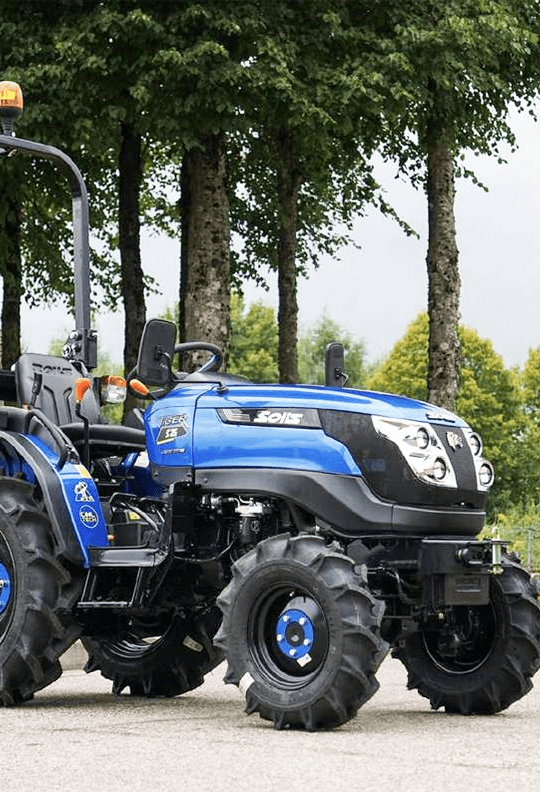

S 26 Shuttle XL (9+9)

3-year-g-stamp

UPGRADE YOUR FARM WITH
ADDED VERSATILITY & COMFORT

Take your farming ventures to the next level! Designed with power and unmatched technology, the strong SOLIS S26 XL enhances your potential and delivers great performance every time. Power-packed with a high lifting capacity of 600 Kg and Synchromesh Shuttle Lever transmission, this means machine empowers you to tackle every challenge smoothly.

INTEGRATED LOADER

INTEGRATED LOADER JOYSTICK (OPTIONAL)

MULTI TIRE OPTIONS

MULTI TIRE OPTIONS (AGRI, INDUSTRIAL & TURF TYRE)

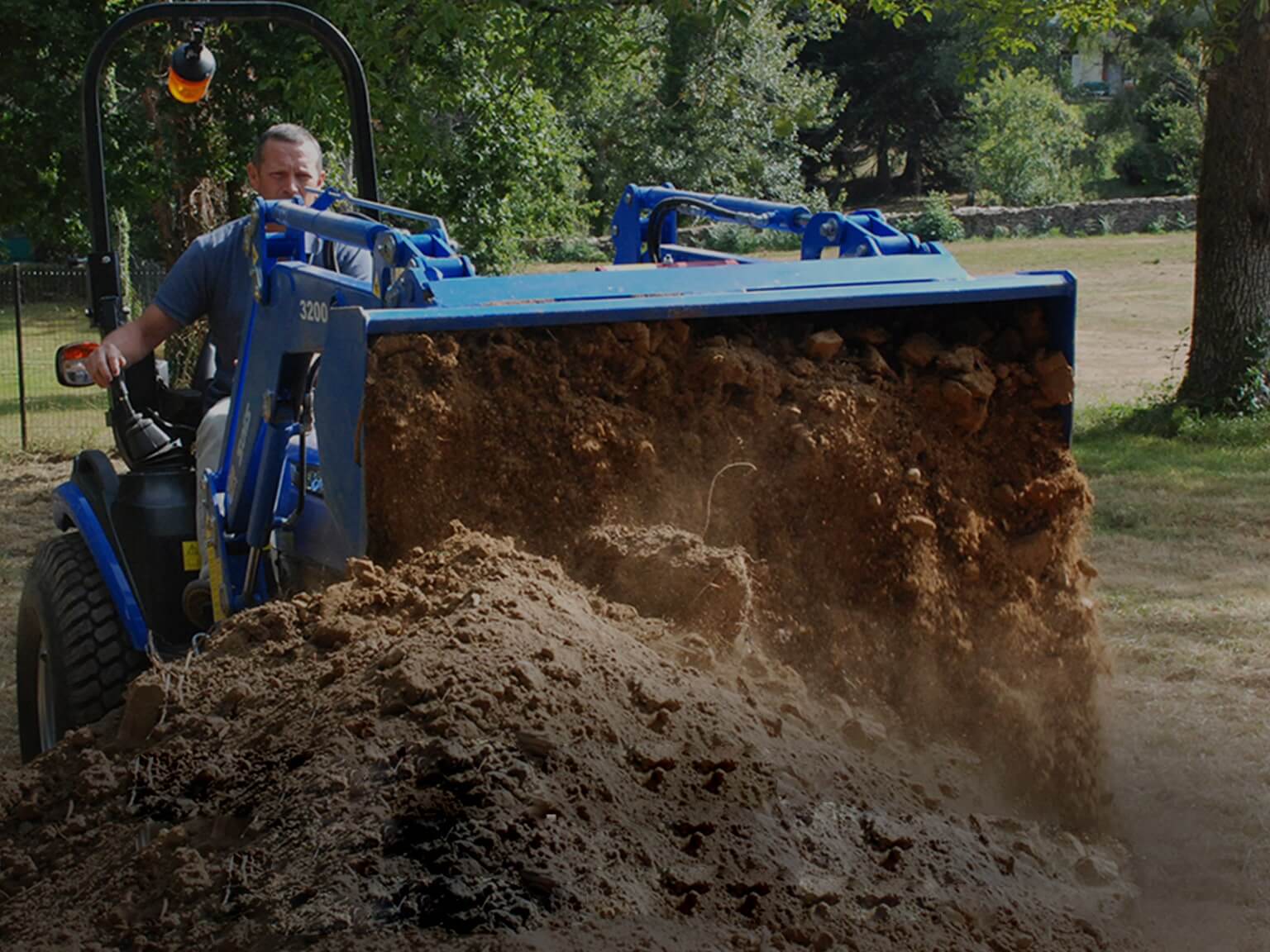

QUICK ATTACHED LOADER

QUICK ATTACHED LOADER

SYNCHROMESH SHUTTLE

SYNCHROMESH SHUTTLE

2.1

9 FORWARD X 9 REVERSED GEAR

    By using this form you agree with the storage and handling of your data by this website.

    TECHNICAL SPECIFICATION

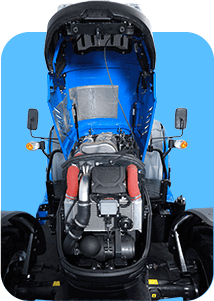

    ENGINE
    Engine Type Mitsubishi 3-Cylinder Diesel Motor
    HP Category 26
    No. of Cylinders 3
    Aspiration Naturally
    Cubic Capacity (cc) 1319
    Rated RPM (+/-25mm) 2500
    Air Cleaner Dry
    Cold Start Standard
    Max Torque (Nm) 76.3
    Exhaust Silencer in the engine compartment, downward discharge
    TRANSMISSION
    Drive 4 WD
    Clutch Single Clutch
    Gearbox 9 Forward + 9 Reverse
    Front Axle 4WD
    Transmission Constant Mesh with Synchromesh Shuttle Lever
    SPEED (FORWARD)
    Maximum Speed (Km/Hr) 21.46 @2760 fly up
    Minimum Speed (Km/Hr) 1.14@rated
    BRAKES
    Brakes Oil Immersed
    Type of Actuation Mechanical
    Parking Brake Independent
    Trailer load (unbraked) 1050 Kg
    Inertia Braked 3000 Kg
    Differential Lock Yes, Foot Operated
    PTO
    PTO (rpm) 540/540E
    PTO (actuation) Mechanical
    STEERING
    Steering Power steering
    ELECTRICAL
    Battery 12V, 65 Ah
    Alternator 12V, 42 A
    Seven Pin Trailer Socket Standard
    HYDRAULICS
    3 Point Linkage Cat 1-N
    Stay Bars Anchor Chain
    Additional hydraulic circuit 1 DA
    Hydraulic Lifting Capacity 600 Kg
    Lift Rods Standard
    Litre per Minute(LPM) 17.8
    Front loader YES optional
    TYRE
    Front 6.00-12
    Rear 8.30-20
    TYRES

    Radial Agri: Front | Rear

    Turf: Front | Rear

    Ind: Front | Rear

    GALAXY PRO
    6.5/80-12
    280/70 R18
    25×8,50-14
    13.60-16
    23×8,50-12
    33×15,50-6,5
    280/70R16
    SAFETY SWITCH
    PTO Safety Standard
    Neutral Safety Switch Standard
    Clutch Safety Switch Standard
    CAPACITY (LTRS)(+/-5%)
    Fuel Tank (Lit) 20
    TURNING RADIUS
    Without brakes (m) as per standard tyres 3.02 (RHS), 3.15 (LHS)
    OTHERS
    Fuel Indicator Gauge Standard
    Front Toe Hook Standard
    Front & Rear Weights with std. Ballast Front weights-15×2
    Trailer Hitch
    1. Semi Automatic Trailer Hitch
    2. Swinging Drawbar (Optional)
    ROPS Yes
    Cabin Option Yes
    DIMENSION & WEIGHT(+/-5%)
    Weight (Kg) 1250
    Wheel Base (mm) 1570
    Total Length (mm) 2895
    Total Width (mm) 1215 (max)-1050 (min)
    Height (mm) Up to ROPS 2325
    Min Ground Clearance (mm) 240
    Front Track (mm) 885
    Rear Track (mm) 960
    OTHERS
    Fuel Indicator Gauge Standard
    Front Tow Hook Standard
    Front & Rear Weights with std. Ballast Front weights-2 x 15
    Trailer Hitch Towbar, drawbar (optional)
    ROPS Yes
    OPTIONAL FEATURES
    Cabin Option Yes

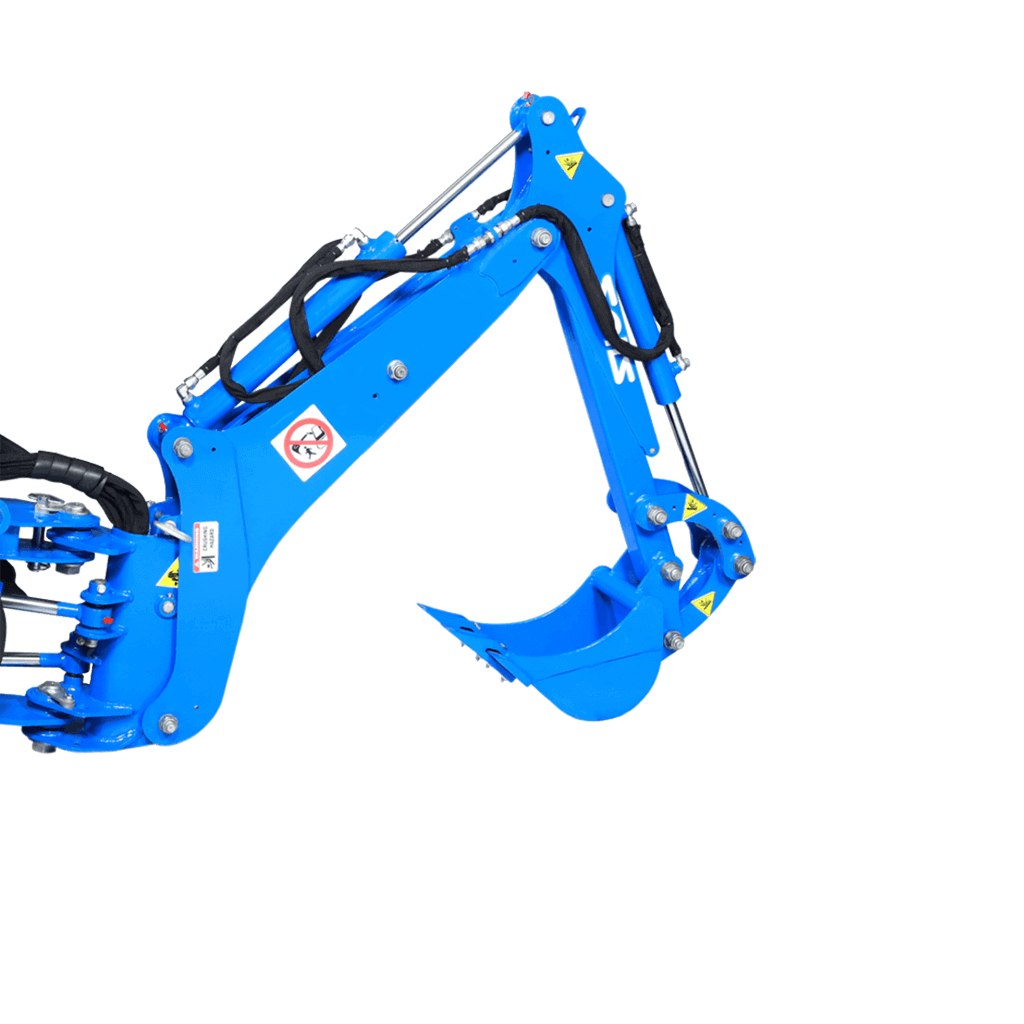

    SUGGESTED IMPLEMENTS
