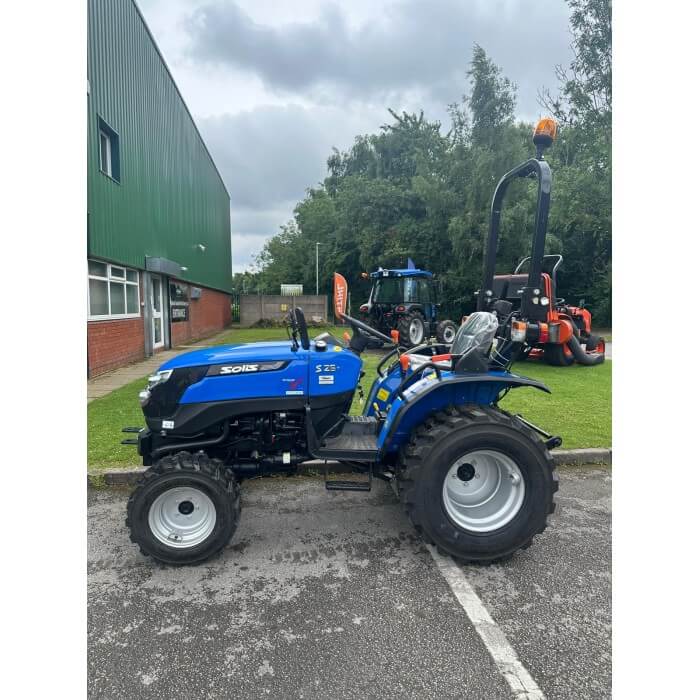

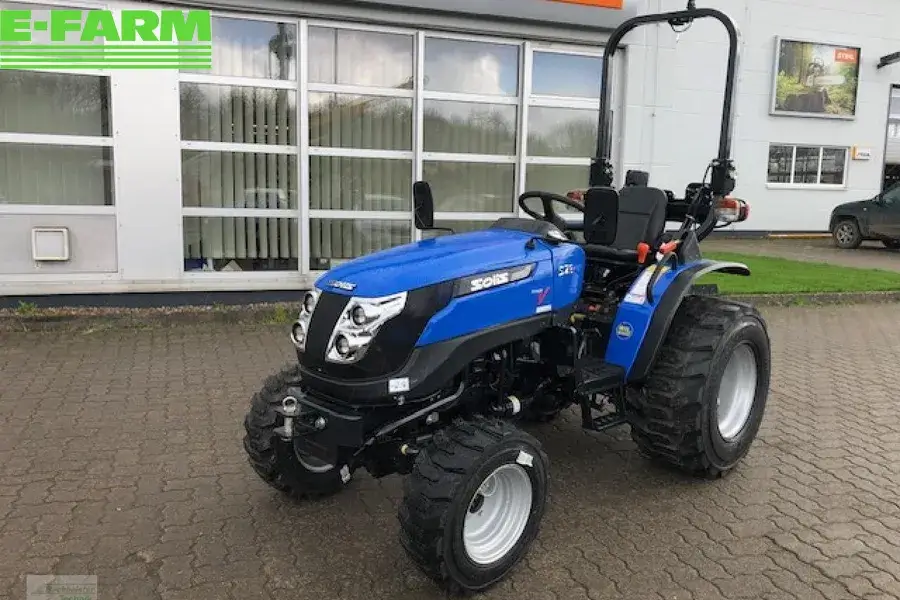

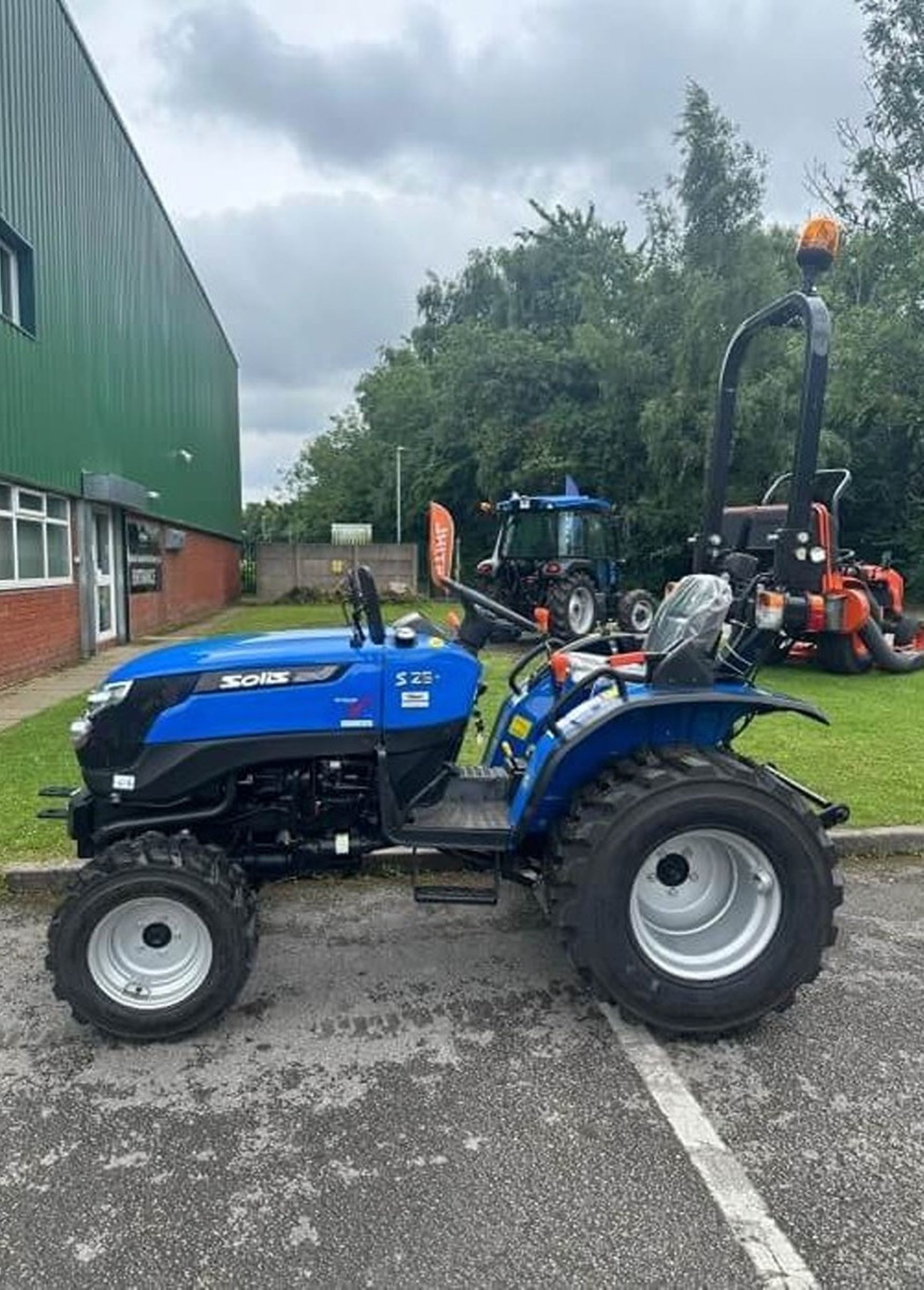

Solis S 26
POWER THAT
ELEVATES POTENTIAL
Taking productivity a notch higher, SOLIS S 26 is a compact tractor that enables a variety of activities on all kinds of terrains with respect to gardening and farming needs. The best compact tractor empowered with hydraulic power steering, this tractor helps in reducing operational stress for the user. With powerful 4 wheel drive and effective traction capability, the compact SOLIS S 26 enables smooth operation. Fully empowered with Industrial/ Agri/ Turf tyres (optional) for easy operation on every farm and optional cabin facility, this efficient tractor is a smart buy and is capable of igniting your potential with more power.
3 CYLINDER MITSUBISHI ENGINE
1SA/1DA AUXILIARY HYDRAULIC CIRCUIT
MECHANICAL TRANSMISSION FOR SPEED PRECISION
SLEEK & STYLISH BONNET
TECHNICAL SPECIFICATION
| ENGINE | ||||
| Engine Type | MHI Engine | |||
| HP Category | 26 | |||
| No. of Cylinders | 3 | |||
| Aspiration | Natural | |||
| Cubic Capacity (cc) | 1318 | |||
| Rated RPM | 2700 | |||
| Air Cleaner | Dry Type with Clogging Sensor | |||
| Cold Start | Standard | |||
| Max Torque (Nm) | 76.3 Nm | |||
| Exhaust | Downdraft Exhaust | |||
| Muffler | Under-hood | |||
| TRANSMISSION | ||||
| Drive | 4WD | |||
| Clutch | Single Clutch | |||
| Gearbox | 6F+2R | |||
| Front Axle | 4WD | |||
| Transmission | Sliding Mesh | |||
| BRAKES | ||||
| Brakes | Oil Immersed Brakes | |||
| Type of Actuation | Mechanical | |||
| Parking Brake | Independent | |||
| PTO | ||||
| PTO (RPM) | 540/1000 | |||
| PTO (Actuation) | Mechanical | |||
| HYDRAULICS | ||||
| 3 Point Linkage | Cat 1-N | |||
| Stay Bars | Anchor Chain | |||
| Hydraulic Lifting Capacity (Kg) | 600 | |||
| Auxiliary Hydraulic Circuit | 1DA | |||
| STEERING | ||||
| Steering | Power | |||
| TYRE | ||||
| Front | 6.00 – 12 | |||
| Rear | 8.30 – 20 | |||
| SPEED (FORWARD) Agri Tyre | ||||
| Maximum Speed (Km/Hr) | 18.08 | |||
| Minimum Speed (Km/Hr) | 1.67 @ 2700 erpm Speeds May Vary with Other Tyres |
|||
| DIFFERENTIAL LOCK | ||||
| Differential Lock | Mechanical, Foot Operated | |||
| TYRES | ||||
| TURF | INDUSTRIAL | AGRI | RADIAL | GALAXY PRO |
| Front Tyre: 23×8.50-12 Rear Tyre: 33×15.50-16.5 |
Front Tyre: 23×8.50-12 Rear Tyre: 33×15.50-16.5 |
Front Tyre: 7×14 Rear Tyre: 8.3×24 |
Front Tyre: 6.5/80-12 Rear Tyre: 280/70 R18 |
Front Tyre: 220/55 R12 Rear Tyre: 280/70 R16 |
| Front End Loader | Optional | |||
| ELECTRICAL | ||||
| Battery | 12V, 65Ah | |||
| Alternator | 12V, 42Amp | |||
| Seven Pin Trailer Socket | Output 12V | |||
| SAFETY SWITCH | ||||
| Clutch Safety Switch | Standard | |||
| PTO Safety Switch | Standard | |||
| Neutral Safety Switch | Standard | |||
| CAPACITY (Ltrs.) (+/-5%) | ||||
| Fuel Tank (Ltr.) | 26 | |||
| TURNING RADIUS | ||||
| With Brakes (m) | 2.7 | |||
| Tires: | – Agricultural tires (radial) – Turf tires – Industrial tires |
| Cabin | – Incl. heating |
| Follower front linkage | – Approx. 1,100 kg lifting capacity – CAT 0 with coupling triangle or CAT 1 (with Walterscheid quick coupler) – Two double-acting lifting cylinders – Lower link with pendulum compensation, can be folded up and removed without tools |
| Solis front loader | – Parallel guide – 300 kg lifting capacity (with standard bucket ) – 3. Control circuit – Own mounting – Available attachment tools: bucket, rock bucket, grab bucket, 4 in 1 bucket |
| DIMENSION & WEIGHT (+/-5%) Agri Tyre | ||||
| Weight (Kg) | 995 | |||
| Wheel Base (mm) | 1560 | |||
| Total Length (mm) | 2760 | |||
| Total Width (mm) | 1075 | |||
| Height (mm) Up to ROPS | 1955 | |||
| Min. Ground Clearance (mm) | 240 | |||
| Front Track (mm) | 885 | |||
| Rear Track (mm) | 835 | |||
| Fuel Indicator Gauge | Standard | |||
| Front Tow Hook | Standard | |||
| Front & Rear Weights with Std. Ballast | Front Weights – 15 x 2 | |||
| Trailer Hitch | 1. Swinging Bar (Optional) 2.Clevis Hitch (Standard) 3. Semi Automatic Hitch |
|||
| Roll Over Protection | Standard | |||
| Canopy | Optional | |||
MAJOR APPLICATIONS
Fueling your versatility with more power, the SOLIS S26 works like the perfect agri-professional in multiple farm applications. The high lifting capacity enables you to perform loader and haulage applications seamlessly while the hydraulic power steering adds more comfort to your farming endeavors. This smart solis tractor is an absolute champion not only for industrial challenges but also for maintenance tasks like livestock farming and greenhouse applications, enabling extra precision in the fields.
