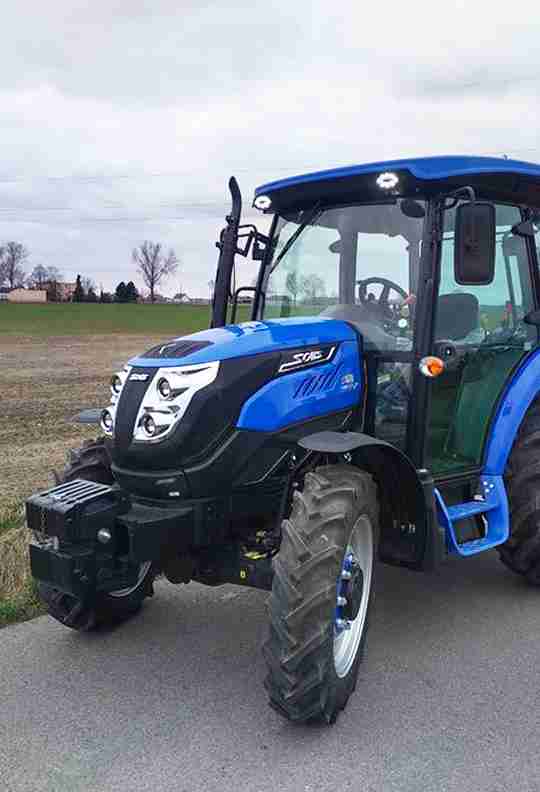

Solis S 60
COMPACT IN DESIGN.
POWERFUL ON FIELDS.
Amplify your potential with toughest performer for fields. Delivering endurance and the perfect ergonomics, SOLIS S60 is built with high-end technology comprising of a roaring 4 cylinder engine and constant-mesh transmission that ensures perfect maneuverability in any terrain condition. The power steering and enhanced features guarantee smooth and comfortable journey
AGILE 4 CYLINDER ENGINE
8F+2R SWIFT SHIFT TRANSMISSION
AVAILABLE IN 3 CYLINDER
SLEEK & STYLISH BONNET
TECHNICAL SPECIFICATION
| ENGINE | |
| Engine Type | 3 Cylinder Turbocharged with Intercooler |
| HP Category | 60 |
| No. of Cylinders | 3 |
| Aspiration | Turbo Charged |
| Cubic Capacity (cc) | 2780 |
| Rated RPM | 2100 |
| Air Cleaner | Dry Type |
| Max Torque (Nm) | 230Nm @ 1300 erpm |
| Exhaust | Upward Exhaust |
| Muffler | Under-hood |
| TRANSMISSION | |
| Drive | 4WD |
| Clutch | Dual Clutch, Dry Friction Plate |
| Gearbox | 8F+2R |
| Front Axle | 2WD/4WD |
| Transmission | Constant Mesh |
| SPEED (FORWARD) | |
| Maximum Speed (Km/Hr) | 32.79 @ 2100 erpm |
| Minimum Speed (Km/Hr) | 2.50@ 2100 erpm |
| BRAKES | |
| Brakes | Oil Immersed Brake |
| Type of Actuation | Mechanical (Ind) |
| Parking Brake | Independent Type |
| DIFFERENTIAL LOCK | |
| Differential Lock | Mechanical, Foot Operated |
| PTO | |
| PTO (RPM) | 540 @1680 erpm |
| PTO (Actuation) | Mechanical |
| STEERING | |
| Steering | Power |
| ELECTRICAL | |
| Battery | 12V, 88Ah / 110Ah |
| Alternator | 12V, 36Amp |
| Seven Pin Trailer Socke | Output 12V |
| HYDRAULICS | |
| 3 Point Linkage | CAT-II |
| Stay Bars | Adjustable |
| Hydraulic Lifting Capacity (Kg) | 2000 |
| Auxiliary Hydraulic Circuit | 2DA |
| Lift Rods | Adjustable |
| Tyre | Front Tyre: 9.5×24 | Rear Tyre: 16.9×28 |
| 2WD | Front Tyre: 7.5×16 | Rear Tyre: 14.9×28 |
| 2WD | Front Tyre: 7.5×16 | Rear Tyre: 16.9×28 |
| SAFETY SWITCH | |
| Clutch Safety Switch | Standard |
| PTO Safety Switch | Standard |
| Neutral Safety Switch | Standard |
| CAPACITY (Ltrs.) (+/-5%) | |
| Fuel Tank (Ltr.) | 65 |
| TURNING RADIUS | |
| Without Brakes (m) | 4.7 |
| OTHERS | |
| Fuel Indicator gauge | Standard |
| Front Tow Hook | Inbuilt in front weight |
|
Front & Rear Weights with Std. Ballast
|
Front- 31kgX6 , Rear- 1X34 kg each tyre |
| Trailer Hitch | Swinging Drawbar |
| ROPS | Standard |
| OPTIONAL FEATURES | |
| Canopy | Optional |
| 2WD Variant | Yes (optional) with 7.5X6 Front Tyre |
| Tyre 4WD | 16.9X30 (Rear) |
| DIMENSION & WEIGHT (+/-5%) | |
| Weight (Kg) | 2954 |
| Wheel Base (mm) | 2350 |
| Total Length (mm) | 3980 |
| Total Width (mm) | 1790-1950 |
| Height (mm) Up to ROPS | 2650 |
| Min. Ground Clearance (mm) | 360 |
| Front Track (mm) | 1295-1650 |
| Rear Track (mm) | 1420-1880 |
| Fuel Indicator Gauge | Standard |
| Front Tow Hook | Standard, Inbuilt in Front Weights |
| ront Weights with Std. Ballast | Front Weight 30*2+25*4 (4WD) Front Weight 51+6*29 (2WD) |
| Trailer Hitch | Swinging Draw Bar |
MAJOR APPLICATIONS
Known for its over the top lifting capacity, the ultra-efficient SOLIS S50 is highly competent and works wonders on your farm. The superior functionality ensures excellent performance in every terrain and weather condition, boosting your productivity. Engineered with a high back-up torque, this power professional is capable of carrying heavy loads without compromising your comfort and safety. It is also helpful in other farming applications like ploughing, tilling and grass cutting, actualizing all your dreams to reality.
