TRACTOR IMPLEMENTS

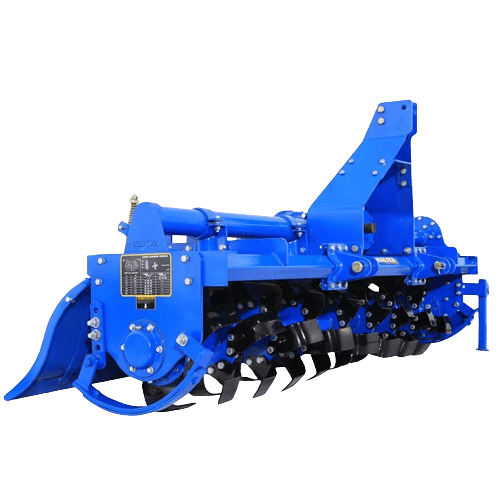

Rotavator

heavy duty gearbox compatible with higher hp tractors up to 90hp international quality boron steel anti wear blades flexible & adjustable trailer spring Rotavator Alpha heavy duty structure
Alpha

The power-packed performance of our rotavator takes your farming potential to the next level, with its advanced features and superior functionality. Mainly used for seed bed preparation, it is also highly efficient in removing & mixing residual, thereby helping to improve soil health. Enhanced with a heavy-duty structure and robust design, this rotavator is the perfect companion to complement your farming goals.

    By using this form you agree with the storage and handling of your data by this website.

    heavy duty 2 speed gearbox

    HEAVY DUTY 2 SPEED GEARBOX

    duo cone mechanical seal suitable for dry & wet lands

    DUO CONE MECHANICAL SEAL SUITABLE FOR DRY & WET LANDS

    oil immersed side bearings

    OIL IMMERSED SIDE BEARINGS

    heavy duty body structure with 7 mm thick blade

    HEAVY DUTY BODY STRUCTURE WITH 7 MM THICK BLADE

    TECHNICAL SPECIFICATIONS

    Model Name Length(mm) Width (mm) Height (mm) Size (in feet ) Tillage Width(mm) Gear Box Side Transmission Type of Blade No. of Blades No. of Flange’s Weight (kg.approx) Tractor Power (HP)
    Alpha Series SL AS5 1802 895 1104 5 1625 Multi Speed Gear Drive C & L Type 36 7 430 45-55
    SL AS5.5 1975 5.5 1800 36 7 445 50-60
    SL AS6 2054 6 1880 42 8 460 60-70
    SL AS7 2305 7 2130 48 9 490 70-80
    SL AS8 2510 8 2335 54 10 545 75-85
    SL AS9 2995 9 2820 60 11 580 70-80
    SL AS10 3215 10 3040 66 12 650 80-90
