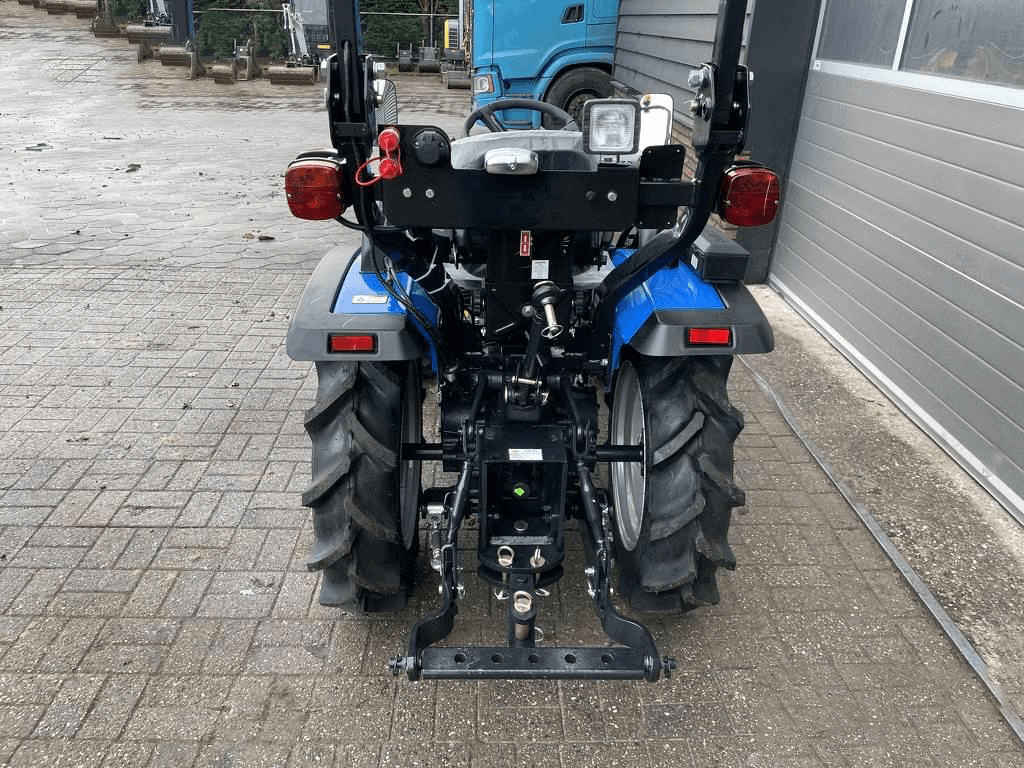

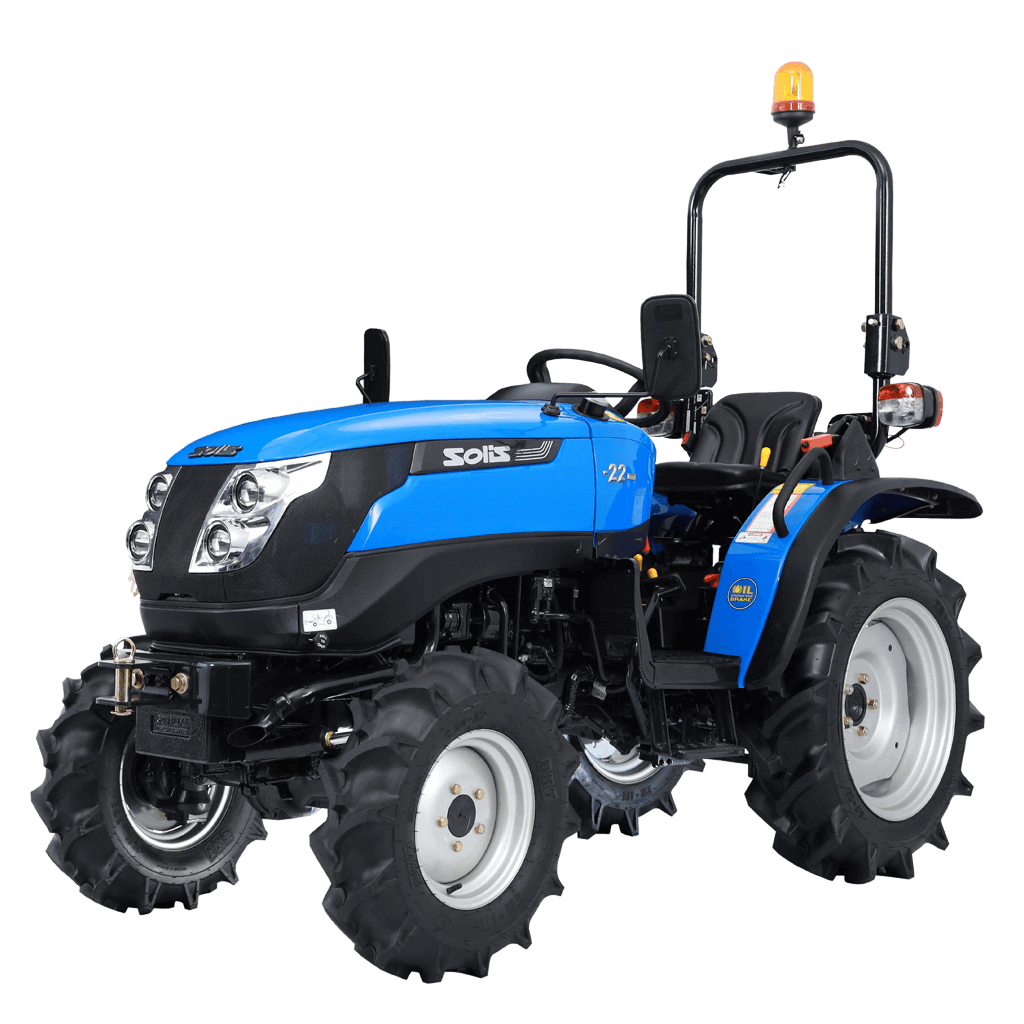

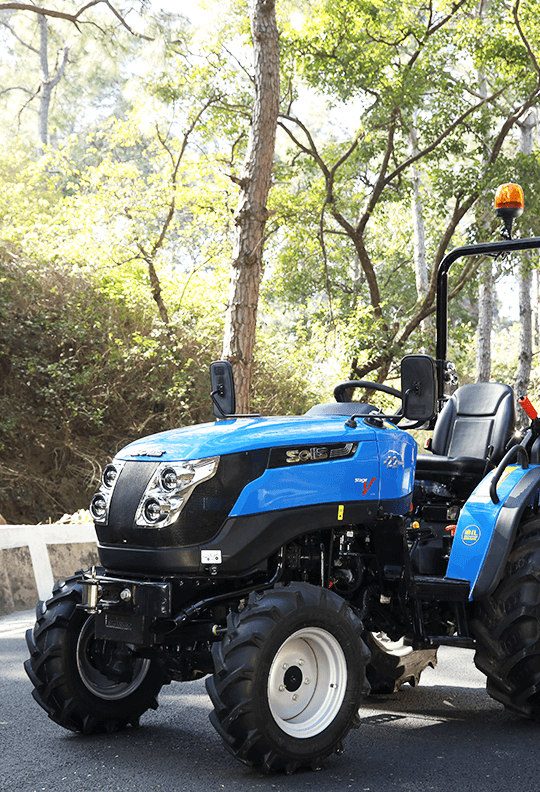

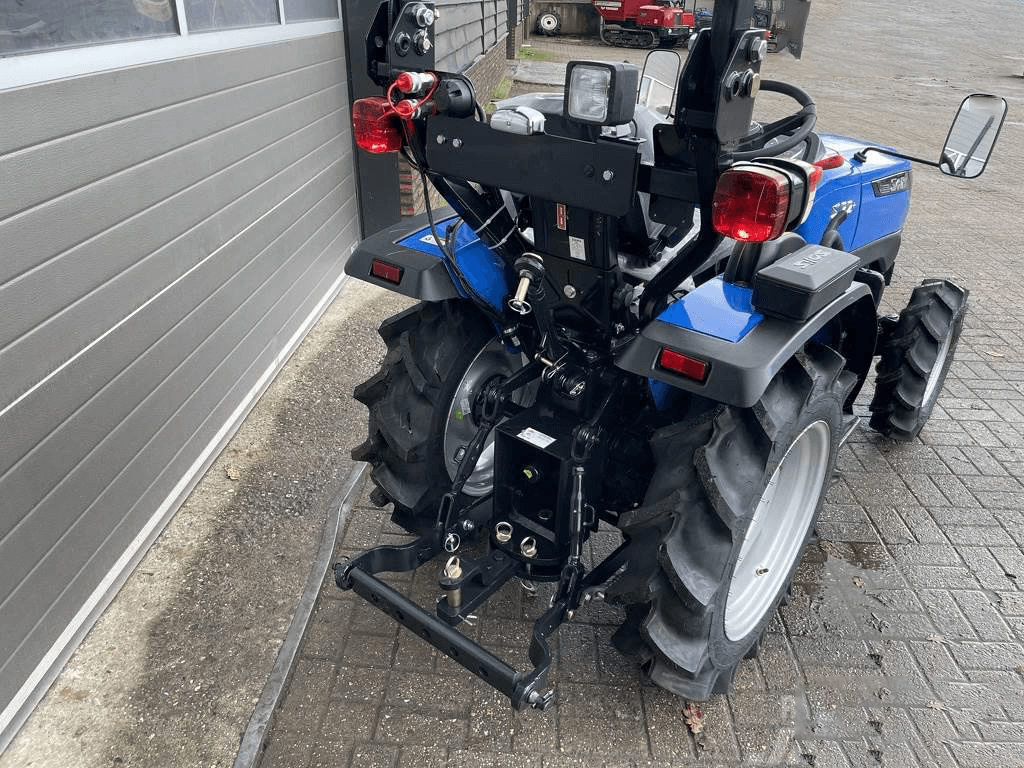

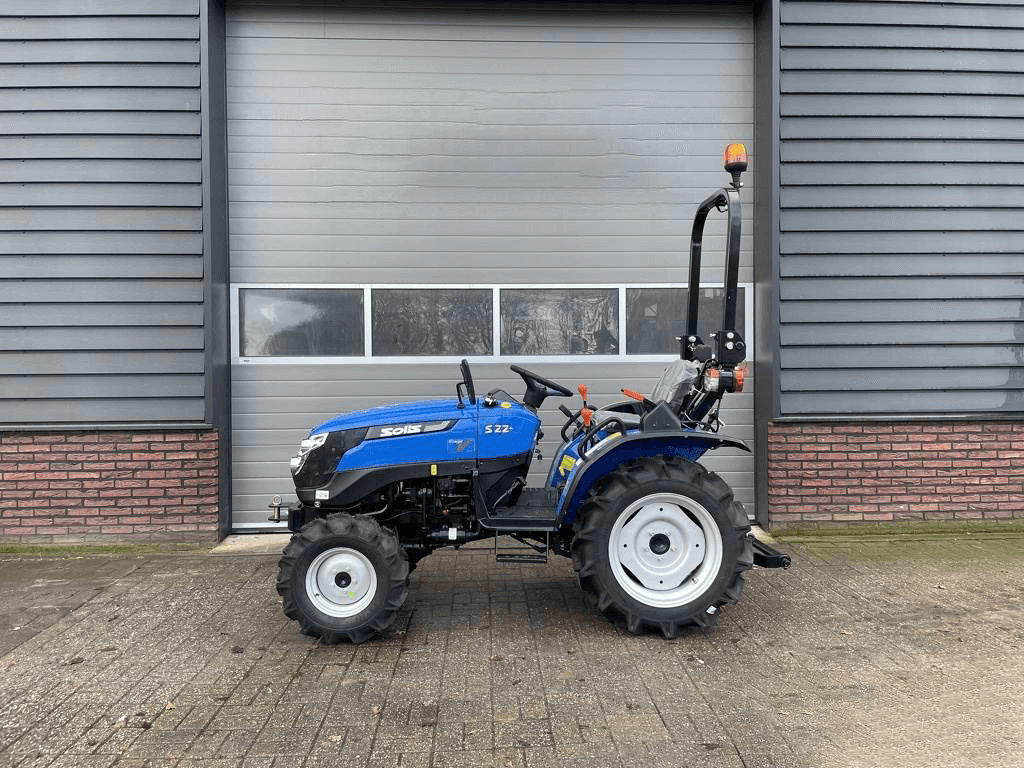

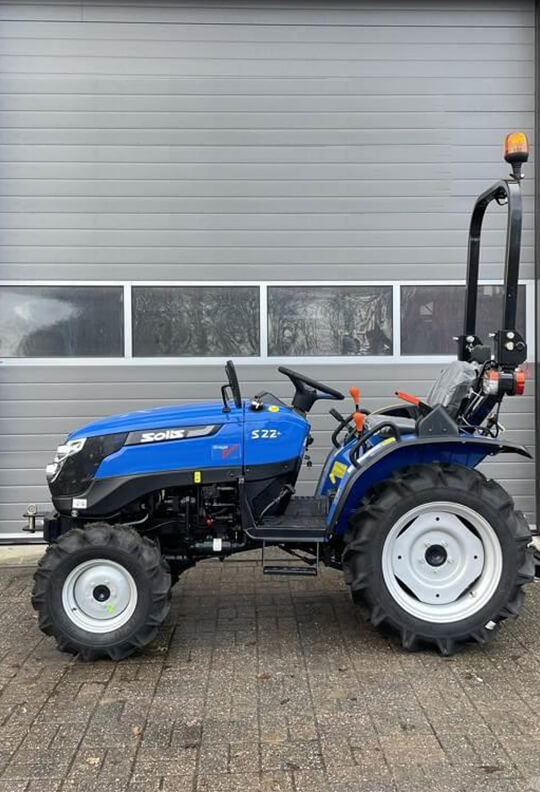

S 22

3 Years Warranty stamp tinf

ELEVATING POTENTIAL

A tractor that enables all your garden and farming needs, this power performer is empowered with a power steering to help reduce operational stress for the user. The powerful 4 wheel drive and effective traction capacity od Solis S22 capacitates smooth operations and the sliding mesh transmission enables speed precision.

3 CYLINDER STAGE “V” ENGINE

SLEEK & STYLISH BONNET

MECHANICAL TRANSMISSION

By using this form you agree with the storage and handling of your data by this website.

TECHNICAL SPECIFICATION

FEATURES S22
Model Description Solis-22
ENGINE
Engine Type Solis 22 Inhouse
HP Category 22
No. of Cylinders 3
Aspiration Natural
Cubic Capacity (cc) 1130cc
Rated RPM 2700
Air Cleaner Dry Air Cleaner
Cold Start Standard
Max Torque @ RPM (nm) 54 Nm @ 2300
Exhaust Underhood Downdraft Silencer
TRANSMISSION
Drive 4WD
Clutch Single Clutch
Gearbox 6F+2R
Front Axle 4WD
Transmission Sliding Mesh
SPEED (FORWARD)
Maximum Speed (Km/Hr) 15.58 @ 2700
Minimum Speed (Km/Hr) 1.67 @ 2700
BRAKES
Brakes Oil immersed brakes
Type of Actuation Mechanical
Parking Brake Latch Type with Brake Pedals
DIFFERENTIAL LOCK
Differential Lock Yes, Foot Operated
PTO
PTO (RPM) 540 @ 2703 , 1000 @ 2558
PTO (Actuation) Mechanical
STEERING
Steering Power
ELECTRICAL
Battery 12V, 65Ah
Alternator 12V, 42Ah
Seven Pin Trailer Socket Yes
FEATURES S22
HYDRAULICS

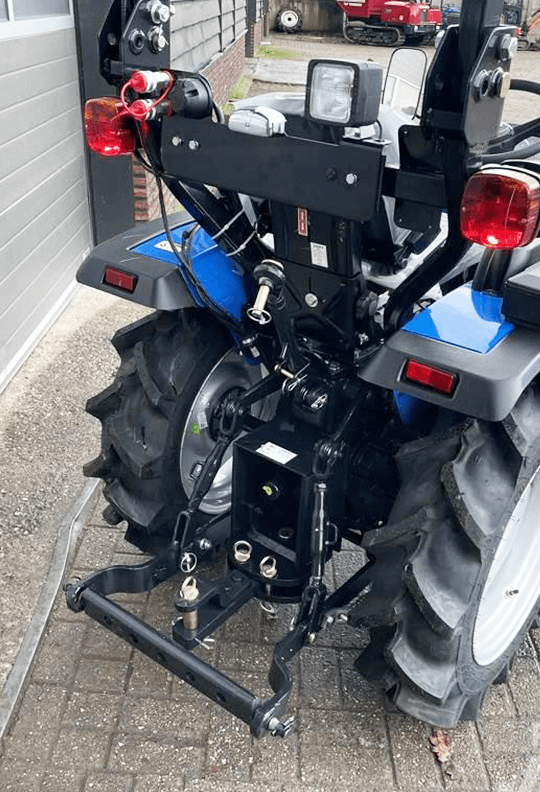

3 Point Linkage Cat 1-N
Stay Bars Anchor Chain
Hydraulic Lifting Capacity 600 Kg
Auxiliary Hydraulic Circuit 1DA
Lift Rods Standard
Litre Per Minute (LPM) 12
SAFETY SWITCH
Clutch Safety Switch Standard
PTO Safety Switch Standard
Neutral Safety Switch Standard
CAPACITY (Ltrs.) (+/-5%)
Fuel tank (Ltr.) 26.5
TURNING RADIUS
Without Brakes (m) 2.2 (RHS) 2.7 (LHS)
TYRE (Standard)
Front 6.00-12
Rear 8.30-20
OTHERS
Fuel Indicator Gauge Standard
Front Tow Hook Standard
Front & Rear Weights with std. Ballast 2×15 kg Front Weights
Trailer Hitch Semi Automatic
ROPS Yes
Cabin Option Yes
DIMENSION & WEIGHT (+/-5%)
Weight (kg) 960
Wheel Base (mm) 1560
Total Length (mm) 2725
Total Width (mm) 1058
Height (mm) Up to ROPS 2153
Min. Ground Clearance (mm) 225
Front Track (mm) 894 894
Rear Track (mm) 825
TYRES
Agri Tyres: Front | Rear 7×14 | 8.3×24
Radial Agri: Front | Rear 6.5/80-12 | 280/70 R18, 220/55 R12 | 280/70 R18
Turf: Front | Rear Turf: Front | Rear 23×8.5-12 | 31×15.5-15, 25×8.5-14 | 13.6×16, 23×8.5-12 | 33×15.5-16.5
Ind: Front | Rear 23×8.5-12 | 33×15.5-16.5, 220/55 R12 | 280/70 R16

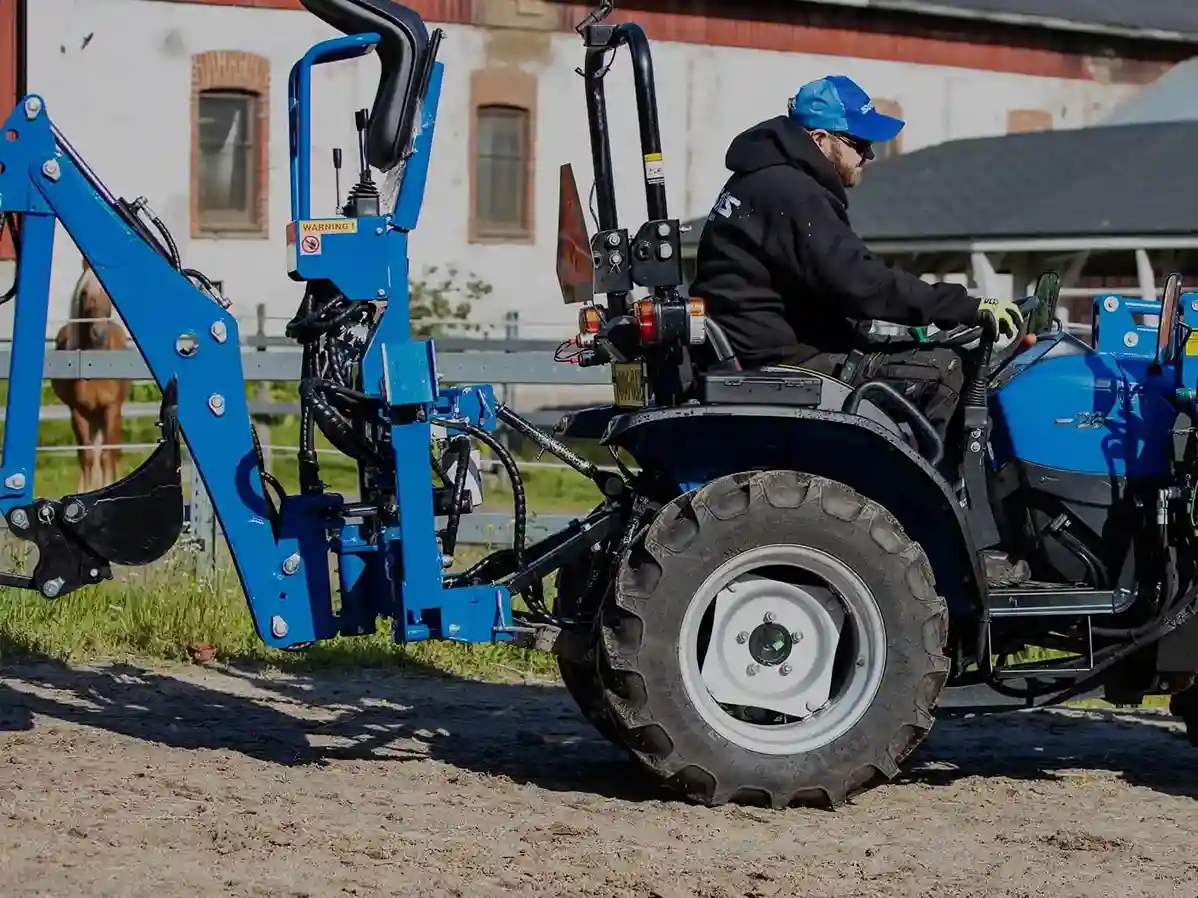

SUGGESTED IMPLEMENTS
