Disc Harrow

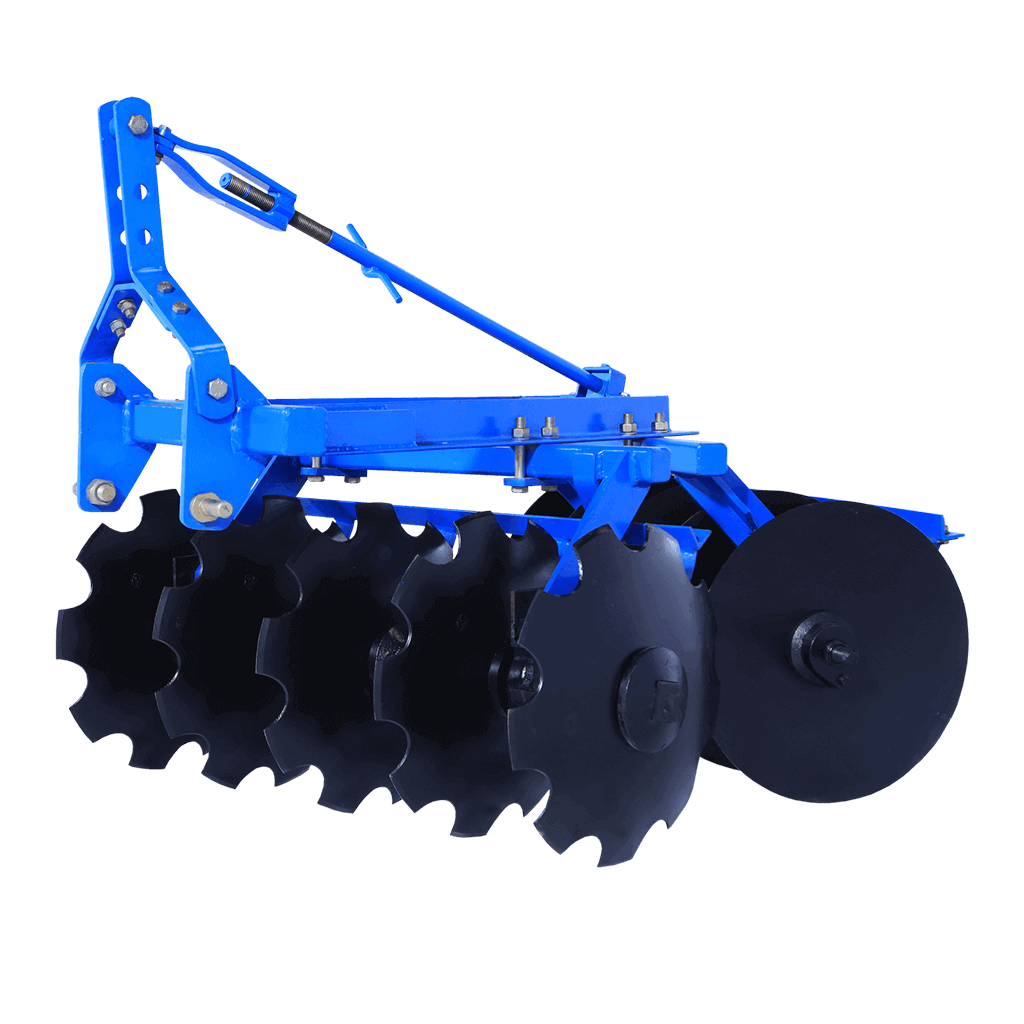

Mounted Offset Disc Harrow
Disc harrow is used to till the soil where crops are to be planted. It is also used to chop up unwanted weeds or crop remainders. The discs are also offset so that they are not parallel with the overall direction of the implement. This arrangement ensures that the discs will repeatedly slice any ground to which they are applied, in order to optimize the result. The concavity of the discs as well as their offset angle causes them to loosen and lift the soil that they cut.
COMBINATION OF PLAIN & NOTCHED BORON STEEL DISC
HIGH QUALITY BORON STEEL DISC
USED FOR CHOPPING UP UNWANTED WEEDS OR CROP RESIDUE
TECHNICAL SPECIFICATIONS
| Model Name |
Frame (mm) |
Gang Bolt /Axle Type (mm) |
No. of Disc |
Type of Disc |
Disc Diameter (mm) |
Width of cut (mm) |
Disc Spacing (mm) |
Bearing Hubs |
Weight (Kg. approx) |
Tractor Power (HP) |
| SL- DH 10 M | Angle 65×8 | 28.5 | 10 |
Notched disc
Front Gang & Plain Disc in Rear Gang |
455 | 1065 | 225 |
4
|
205 | 20-26 |
| SL-DH 12 |
75×10 Angle
Frame with 100×50 Front Channel |
31.5
(Solid Sq. Rod) |
12 |
560
|
1370-1420 | 228 | 390 | 30-40 | ||
| SL-DH 14 | 14 | 1585-1635 | 228 | 430 | 40-50 | |||||
| SL-DH 16 | 16 | 1798-1852 | 228 | 6 | 500 | 50-60 | ||||
| SL-DH 18 | 18 | 2018-2068 | 228 |
8
|
575 | 60+ | ||||
| SL-DH 20 | 20 | 2235-2285 | 228 | 615 | 75+ | |||||
| SL-DH 24 | 24 | 2668-2718 | 228 | 731 | 90+ |
