TRACTOR IMPLEMENTS

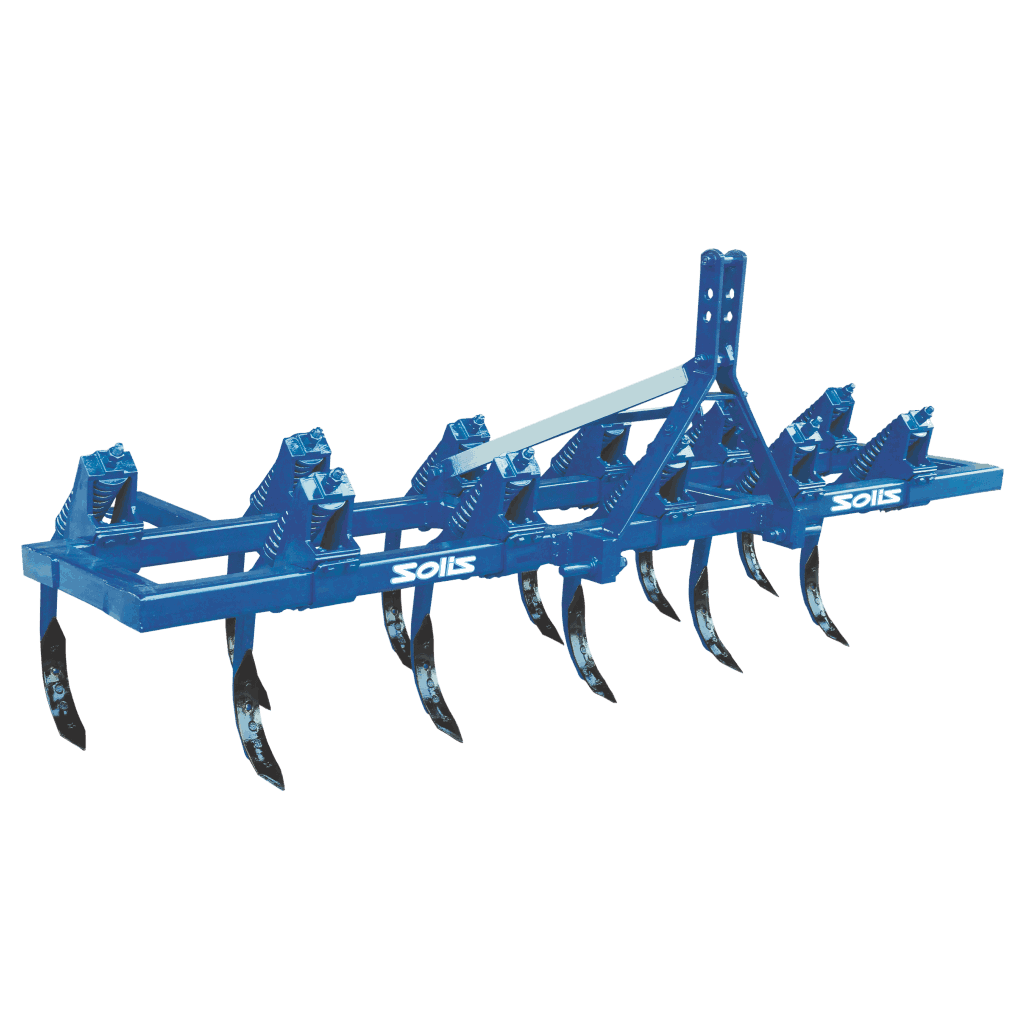

Cultivator

SINGLE SPRING LOADED SERIES

Solis Cultivators helps in proper soil manipulation to prepare smooth & loose seedbed before planting. It loosens & aerates the soil to a depth of 9 inches in most effective and economical way.

Download Brochure

    By using this form you agree with the storage and handling of your data by this website.
    [cf7sr-simple-recaptcha]

    single-spring-cultivator-2

    SINGLE ACTING SPRING DESIGN

    single-spring-cultivator-3

    ENHANCED BEAM CLEARANCE

    single-spring-cultivator-4

    REVERSIBLE SHOVELS

    TECHNICAL SPECIFICATIONS

    Model No. of Tyne Frame (mm) Tyne Size (mm) Shovels (mm) Width (mm) Working Width
    (mm) H    		 Height (mm) Weight
    (Kg. Approx.)    		 Tractor Power
    (HP)
    Single Spring
    Loaded Series
    		 SL-CL-SS11 11
    72x72x5
    (Sq. Pipe)
    26
    8(EN-45)
    		 2620 2570
    1170
    		 350 45-50
    SL-CL-SS13 13 3070 3020 400 55-60
    SL-CL-SS15 15 3520 3470 450 60-65
    SL-CL-SS17 17 3970 3920 500 70-90
