Solis N 75
PRODUCTIVITY
IN NARROW FIELDS

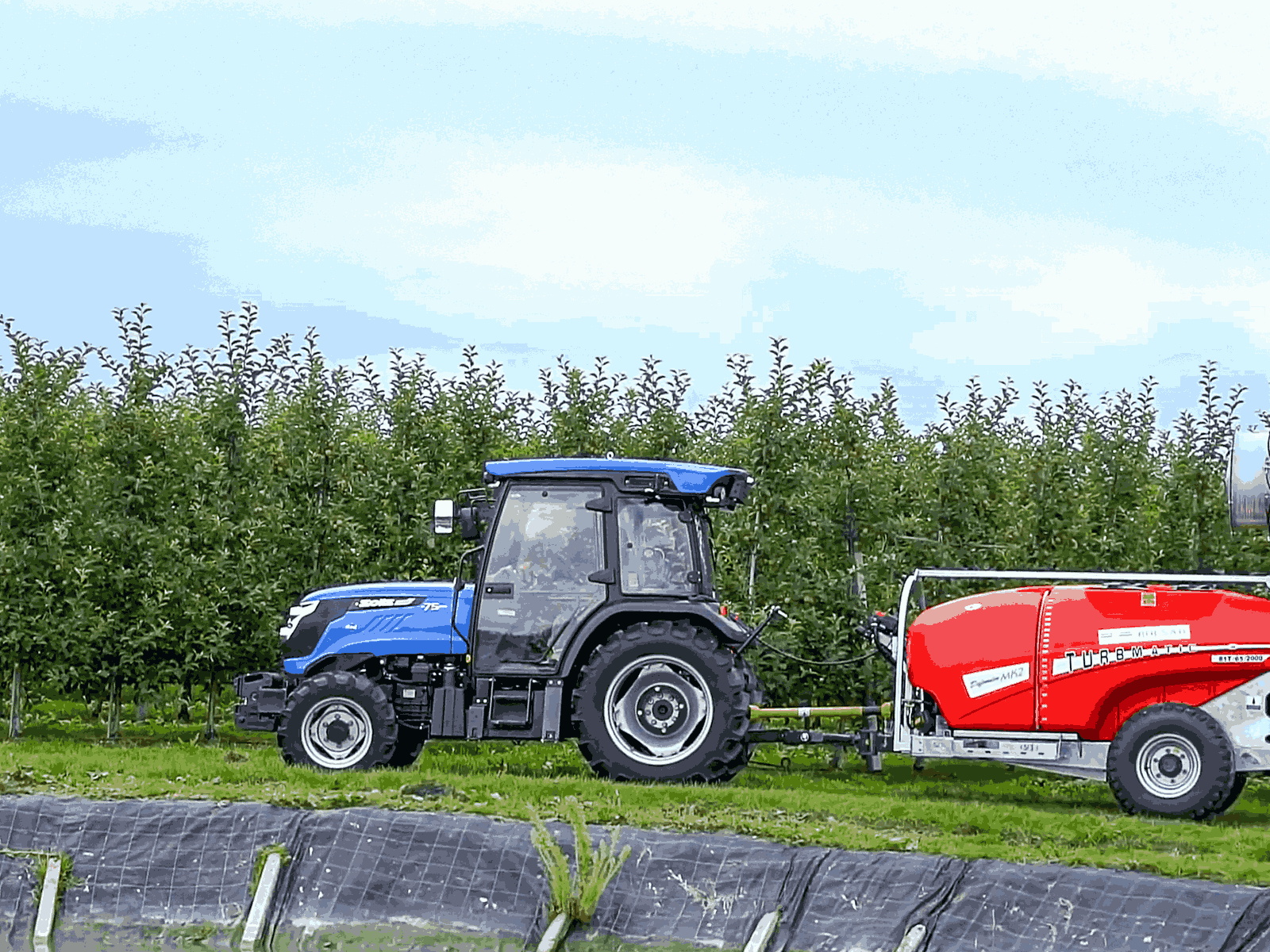

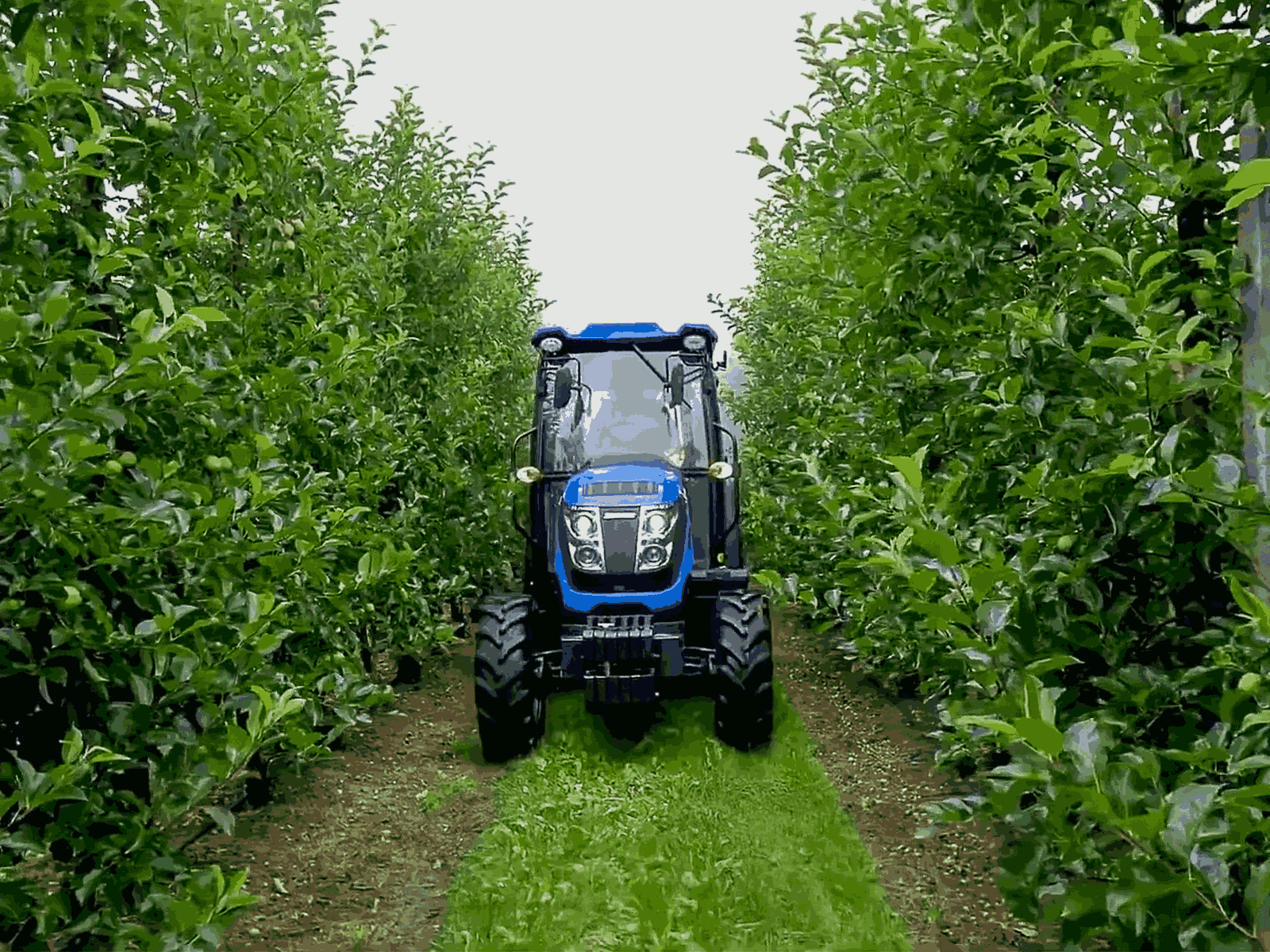

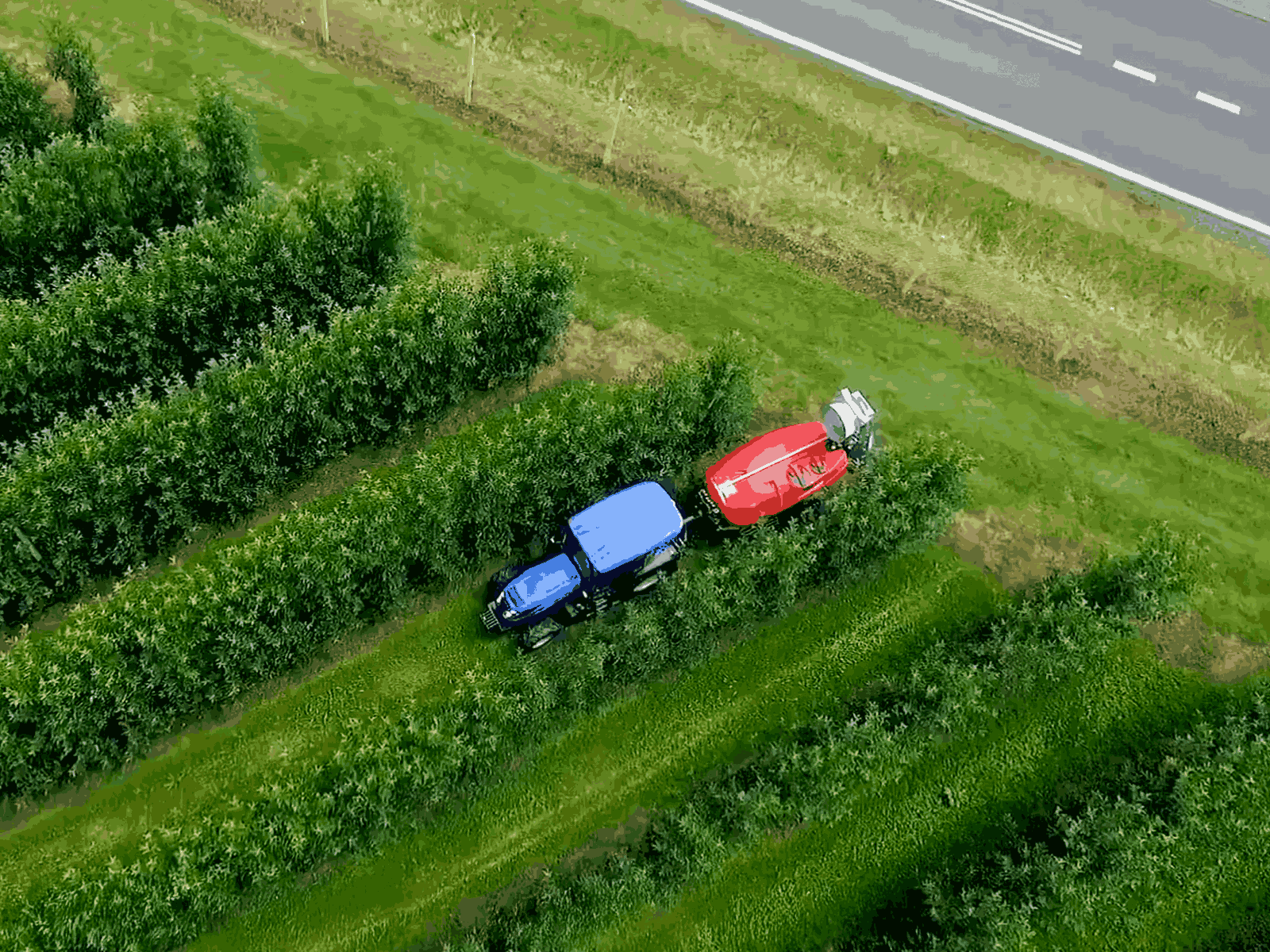

Best suited for composed farming, spraying and orchard applications, SOLIS N 75 makes all your requirements easier with exceptional support and outstanding capability. SOLIS N 75 is available with creeper and standard gear options with the best in-class functionality and exceptional performance. The rounded aerodynamic bonnet along with the overall width of the tractor, of up to 1358 mm actualizes the farmer’s dreams and is designed to render maximum perfection at narrow spaces.
4 CYLINDER TURBO CHARGED ENGINE
2SA/2DA HYDRAULIC CIRCUIT
SYNCHROMESH TRANSMISSION
SLEEK & STYLISH BONNET
TECHNICAL SPECIFICATIONS
| ENGINE | |
| HP Category | 4 Cylinder Turbocharged |
| Emission | Stage 2 / Stage 3 |
| HP Category | 75 |
| No. of Cylinders | 4 |
| Aspiration | Turbocharged |
| Cubic Capacity (cc) | 3707 |
| Rated RPM | 2200/2000 |
| Air Cleaner | Dry Air Cleaner |
| Cold Start | Standard |
| Max Torque (Nm) | 289@1300 | 278@1200 |
| Exhaust | Underhood Downdraft Towards the Floor |
| TRANSMISSION | |
| Clutch | Double |
| Gearbox | 12F+12R |
| Front Axle | 4WD |
| Transmission | Synchromesh Shuttle Transmission
with Creeper |
| SPEED (FORWARD) | |
| Maximum Speed (Km/Hr) | 28.27@2000 erpm |
| Minimum Speed (Km/Hr) | 0.46@2000 erpm |
| BRAKES | |
| Brakes | Oil Immersed Brake |
| Type of Actuation | Mechanical |
| Parking Brake | Mechanical, Hand Operated |
| DIFFERENTIAL LOCK | |
| Differential Lock | Yes, Foot Operated |
| PTO | |
| PTO (RPM) | 540/540E |
| PTO (Actuation) | Mechanical |
| STEERING | |
| Steering | Power |
| ELECTRICAL | |
| Battery | 12V, 85Ah |
| Alternator | 12V, 85Amp |
| Seven Pin Trailer Socket | Standard |
| HYDRAULICS | |
| 3 Point Linkage | CAT-II |
| Stay Bars | Adjustable |
| Hydraulic Lifting Capacity (Kg) | 2500 |
| Auxiliary Hydraulic Circuit | 2DA/2SA/3DA (Optional) |
| TYRE | |
| Front | 8-18 |
| Rear | 14.9-24 |
| Tyres 4WD 2WD | 1) Front Tyre: 260/70R16 | Rear Tyre: 360/70R24 2) Front Tyre: 280/70R18 | Rear Tyre: 360/70R28 3) Front Tyre: 280/70R18 | Rear Tyre: 420/70R24 4) Front Tyre: 6.5×16 | Rear Tyre: 360/70/R28 5) Front Tyre: 6.0×16 | Rear Tyre: 360/70/R24 6) Front Tyre: 6.5×16 | Rear Tyre: 420/70R24 |
| Cabin | HVAC |
| Front Mudguard | Standard |
| SAFETY SWITCH | |
| Clutch Safety Switch | Standard |
| PTO Safety Switch | Standard |
| Neutral Safety Switch | Standard |
| CAPACITY (LTRS)(+/-5%) | |
| Fuel Tank (Lit.) | 73 |
| TURNING RADIUS | |
| Without Brakes (m) | 4.58 |
| Tires | Radial tires |
| Cabin | Includes air conditioning |
| Weight (Kg) | 2735 |
| Overall Length (mm) | 4252 |
| Overall Width (mm) | 1475-1606 |
| Overall Height (mm) | 2630 |
| Wheel Base (mm) | 2307 |
| Total Length (mm) | 4280 |
| Min. Ground Clearance (mm) | 255 |
| Front Wheel Track Agri (mm) | 1150-1286 |
| Rear Wheel Track Agri (mm) | 1082-1213 |
| Fuel Indicator Gauge | Standard |
| Front Tow Hook | Standard, Inbuilt in Front Weights |
| Front & Rear Weights with Std. Ballast | Front-72 kg + 6×31 kg Front Removal Weight. / Rear 1*30 kg at Each Wheel |
| Tyre | Front Tyre: 7.5×16 | Rear Tyre: 16.9×30 |
| Trailer Hitch | Swinging Drawbar |
| ROPS | Standard |
