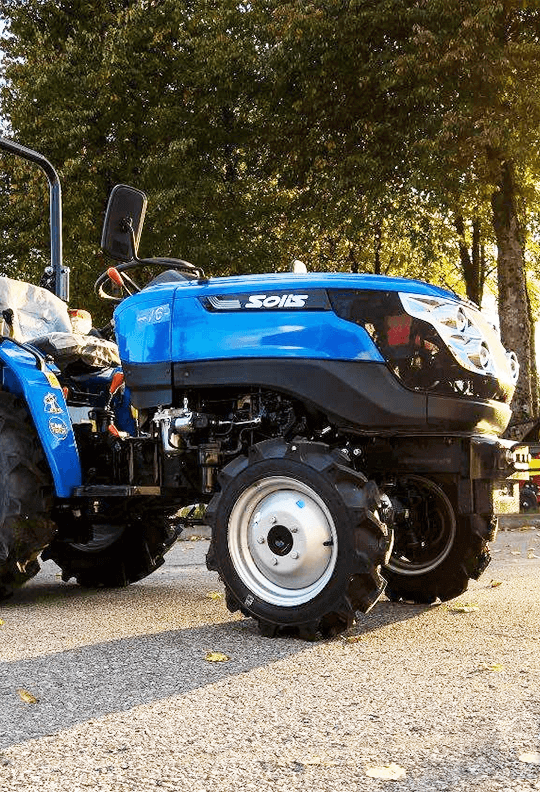

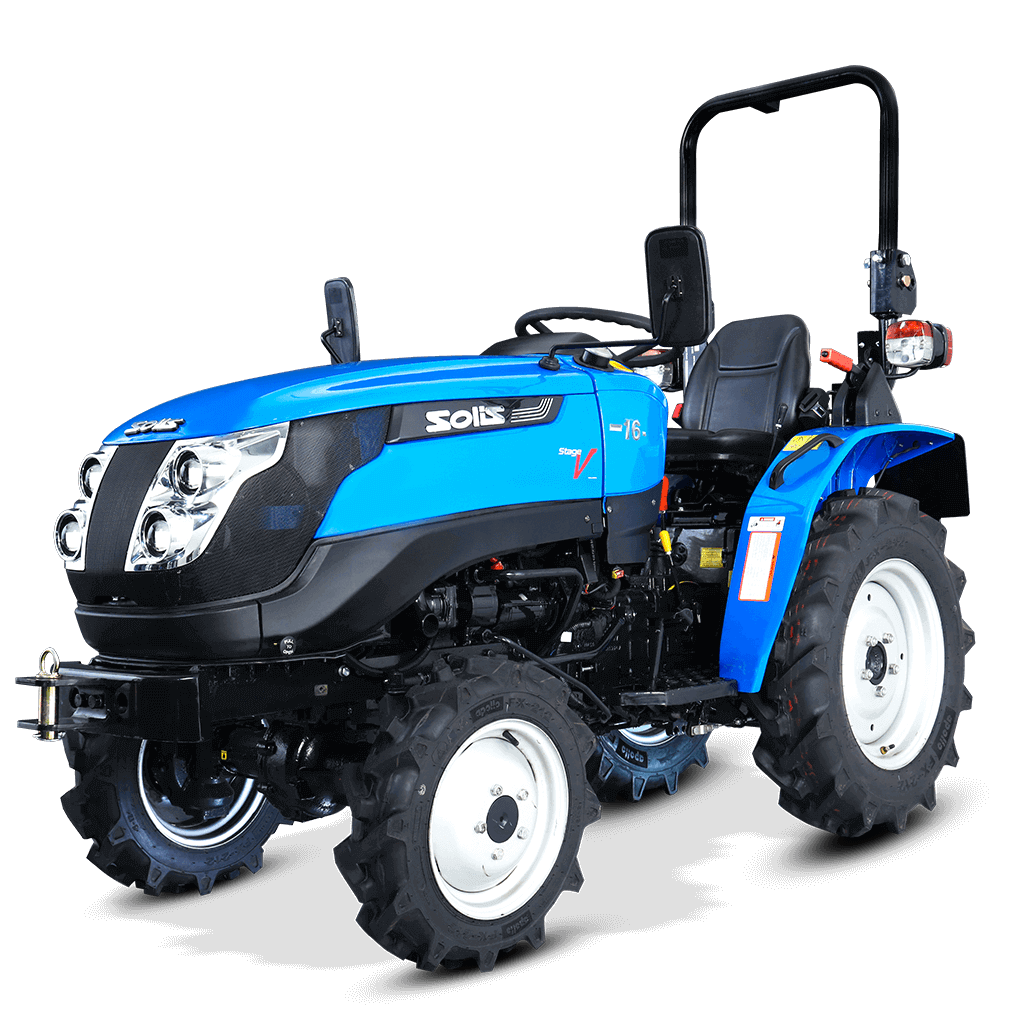

Solis S 16
POWER THAT DEFINES RESULTS
Solis S16 is your one-stop solution for all your needs in gardens and lawns. This Agri expert comes equipped with a heavy-duty engine to provide high power in your lawns.
Additionally, S16 can work on any terrain and that too with smooth transmission. We are sure that with S16, you can take your endeavours of hobby farming, to a whole new level at your comfort.

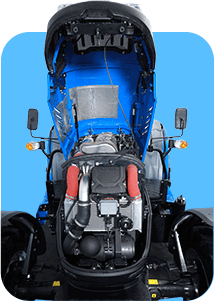

3 CYLINDER HIGH PERFORMANCE ENGINE
EFFICIENT HYDRAULIC PUMP
TWIN PROJECTOR HEADLAMPS
LOW MAINTENANCE
TECHNICAL SPECIFICATION
| ENGINE | ||||
| Engine Type | ITL 3 Cylinder 16 Hp | |||
| HP Category | 16 | |||
| No. of Cylinders | 3 | |||
| Aspiration | Naturally | |||
| Cubic Capacity (cc) | 979 | |||
| Rated RPM (+/-25mm) | 2700 | |||
| Air Cleaner | Dry with clogging sensor | |||
| Cold Start | Standard | |||
| Max Torque (Nm) | 48 | |||
| Exhaust | Silencer in the engine compartment, downward discharge |
|||
| TRANSMISSION | ||||
| Drive | 4 WD | |||
| Clutch | Single Clutch | |||
| Gearbox | 6 Forward + 2 Reverse | |||
| Front Axle | 4WD | |||
| Transmission | SLIDING MESH | |||
| SPEED (FORWARD) | ||||
| Maximum Speed (Km/Hr) | 13.93 | |||
| Minimum Speed (Km/Hr) | 1.36@rated | |||
| BRAKES | ||||
| Brakes | Dry drum brake | |||
| Type of Actuation | Mechanical | |||
| Parking Brake | Independent | |||
| Differential Lock | ||||
| Differential Lock | Yes, Foot Operated | |||
| PTO | ||||
| PTO (rpm) | 540, 1000 | |||
| PTO (actuation) | Mechanical | |||
| STEERING | ||||
| Steering | Mechanical / Power (Optional) | |||
| ELECTRICAL | ||||
| Battery | 12V, 65 Ah | |||
| Alternator | 12V, 42 A | |||
| Seven Pin Trailer Socket | Standard | |||
| HYDRAULICS | ||||
| 3 Point Linkage | Cat 1-N | |||
| Stay Bars | Anchor Chain | |||
| Additional hydraulic circuit | 1SA/1DA (Optional Feature) | |||
| Hydraulic Lifting Capacity | 500 Kg | |||
| Lift Rods | Standard | |||
| Litre per Minute(LPM) | 12 | |||
| SAFETY SWITCH | ||||
| PTO Safety | Standard | |||
| Neutral Safety Switch | Standard | |||
| Clutch Safety Switch | Standard | |||
| CAPACITY (LTRS)(+/-5%) | ||||
| Fuel Tank (Lit) | 26 | |||
| TURNING RADIUS | ||||
| Without brakes (m) as per standard tyres | 2.7 – 3.0 | |||
| TYRE | ||||
| Front | 5.00-12 | |||
| Rear | 8.00-18 | |||
| Tyres | ||||
 Radial Agri: Front | Rear |
 Turf: Front | Rear |
 Ind: Front | Rear |
 GALAXY PRO |
|
| Front 6.5/80-12 REAR 280/70 R18 |
23×8.50-12 33×15.5-16.5 |
23×8.50-12 33×15.5-16.5 |
FRONT 220/55R12 REAR 280/70R16 |
|
| Front loader | YES optional | |||
| DIMENSION & WEIGHT | ||||
| Weight (Kg) | 935 | |||
| Wheel Base (mm) | 1420 | |||
| Total Length (mm) | 2735 | |||
| Total Width (mm) | 1180 (max) – 930 (min) | |||
| Height (mm) Up to ROPS | 1945 | |||
| Min Ground Clearance (mm) | 200 | |||
| Front Track (mm) | 781 | |||
| Rear Track (mm) | 724 | |||
| OTHERS | ||||
| Fuel Indicator Gauge | Standard | |||
| Front Tow Hook | Standard | |||
| Trailer Hitch | Drawbar / Optional Towbar | |||
| ROPS | YES | |||
| OPTIONAL FEATURES | ||||
| Cabin Option | NO | |||
| Front & Rear Weights with std. Ballast | Front weights 30 Kg – 2 x 15 Kg (Optional Feature) | |||
| Beacon Light | Optional | |||
*Data and specifications are subject to change without any advance notice due to continuous product improvement and development. All Dimensions are with standard tyres
