TRACTOR IMPLEMENTS

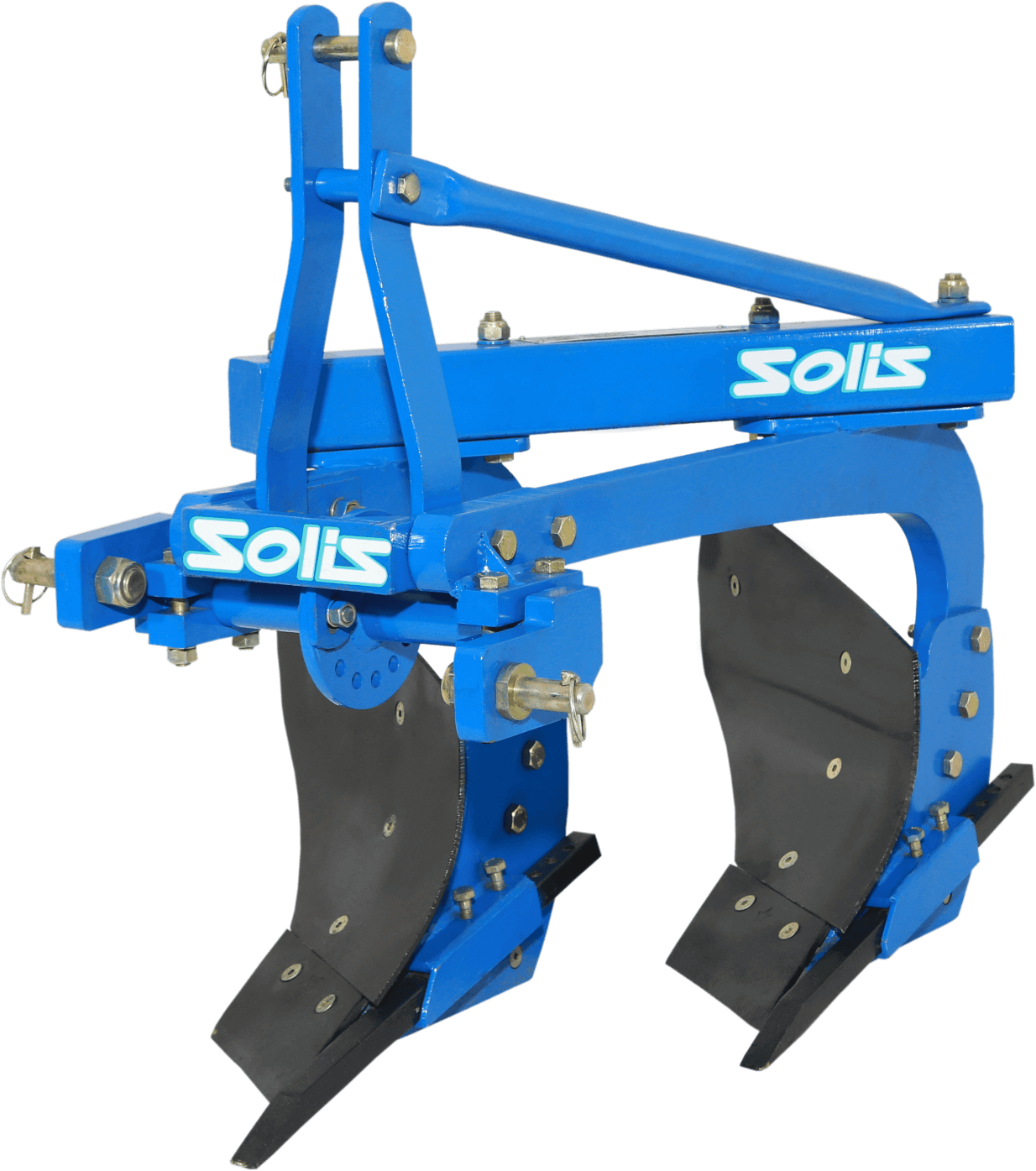

MB Plough
Mini / Heavy Duty Series MB Plough
MB Plough is used for intial soil preparation for sowing seed or planting. Generally used for deep tillage of land, to help turn over the upper layer of the soil, bringing fresh nutrients to the surface, while buying weeds and remains of previous crop. It also aerates the soil, allows it to hold moisture better and is tough to withstand heavy loads.
Robust frame
Long lasting heavy duty blade & bar point
Heavy duty furrow
Heavy duty 3 point linkage
TECHNICAL SPECIFICATIONS
| Model Name |
Furrow | Frame (mm) |
Draw Bar Rod (mm) |
Tines (mm) | Mould Board Thickness(mm) |
Bar Point | Width of Cut(mm) |
Weight (Kg. approx) |
Tractor Power (HP) |
| SL-MP-02 MINI | 2 | 72X72 Square Bar | 45 (Solid Rod) | 28mm Profile Cutting |
6 | 32 | 400 | 120 | 20-26 |
| SL-MP-02 | 2 |
80 x 80
(Square Frame)
|
50
(Solid Rod) |
36mm
profile cutting, single piece |
8
|
34
|
610 | 240 | 45+ |
| SL-MP-03 | 3 | 910 | 350 | 50+ | |||||
| SL-MP-04 | 4 | 100X100 Square Frame | 1210 | 450 | 60+ |
